vLoc3 RTK Pro

The vLoc3 RTK-Pro is a line location and surveying system with RTK-GNSS. The vLoc3-RTK-Pro is a worldwide unique line location and surveying system with fully integrated GNSS receiver and Real Time Kinematic. Using the internal cellular module with 4G LTE capability, the device connects to an NTRIP caster that provides RTCM 3 correction data. By using this correction data, the operator can capture the precise geographic location of the target line with centimeter-level accuracy (2DRMS) and output it on maps, in addition to the measurement data from the line location system.

The vLoc3 RTK-Pro is designed for all operator levels and uses user-friendly, intuitive screen views. The operator simply presses a button to confirm the locate and aligns the electronic level to save the position data. All data from the field is sent to the cloud as well as backed up to the receiver's internal memory for review and export to mapping programs (GIS).

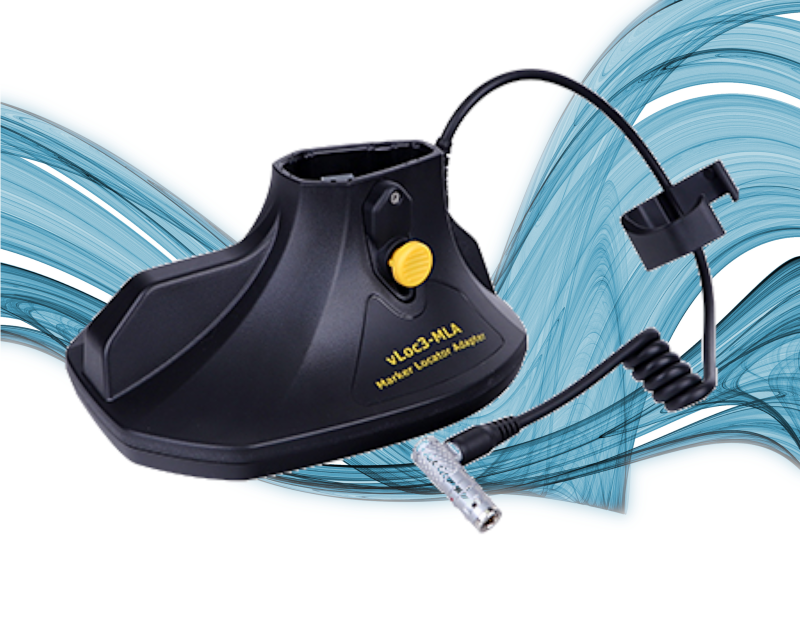

The freely configurable device includes various passive locating modes, a wide frequency selection from 98Hz to 200KHz and special Signal Select (SiS) frequencies to indicate current direction. Customizable audio and vibration alarms give the user immediate feedback about field disturbances, cables that are laid too flat or if the receiver vibrates too much to avoid incorrect measurements. The Bluetooth module enables connection to external devices such as smartphones. Optional accessories (the A-frame antenna for sheath fault location, a marker locator adapter for locating EMS markers and a readout antenna for determining the target line from a cable bundle) can be connected via the accessory socket on the device to extend the range of functions.

---

SCOPE OF DELIVERY

• Li-ion battery pack
• charger
• Bluetooth module
• Special bag
• Alkaline battery holder without batteries

---

Manufacturer: Vivax Metrotech
