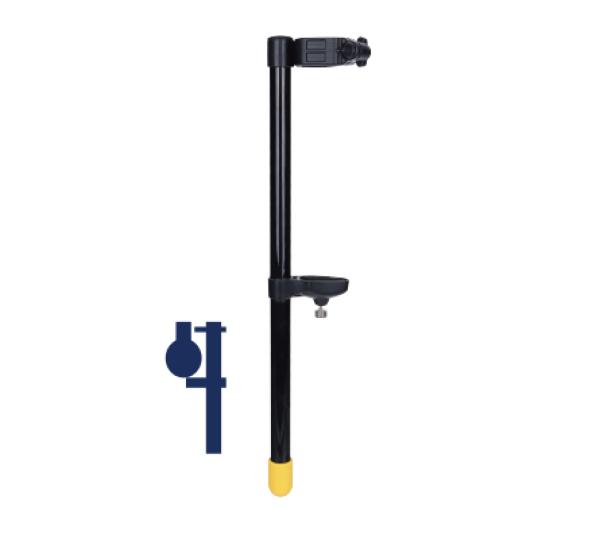

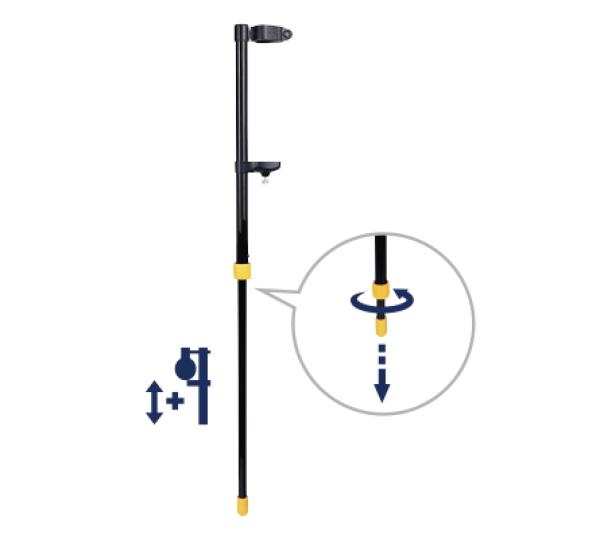

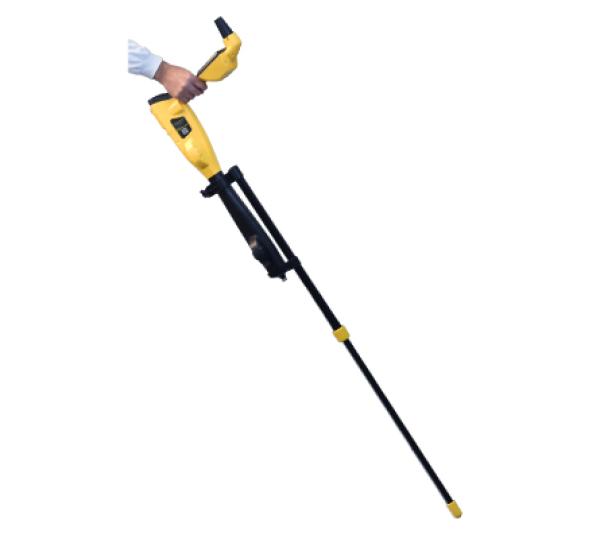

The optional rod extensions for the vLoc3 series locators are passive attachments that attach to the antenna base of the vLoc3 receiver for improved ergonomics for tall people or for measurements in open trenches. The total height of the receiver increases by 30 cm (model L) or 91 cm (model XL). When activated in the receiver, the software automatically compensates for the additional height so that all depth and current readings are displayed correctly.
The extension rod is equipped with a 10mm male threaded bolt at one end. This bolt is screwed into the handle of the pliers and allows you to attach the clamping jaws of the pliers to hard-to-reach cables (e.g. in manholes or overhead lines). (Not suitable for uninsulated overhead lines).
Compatible with 100mm & 125mm signal pliers | Not for SiS signal clamp

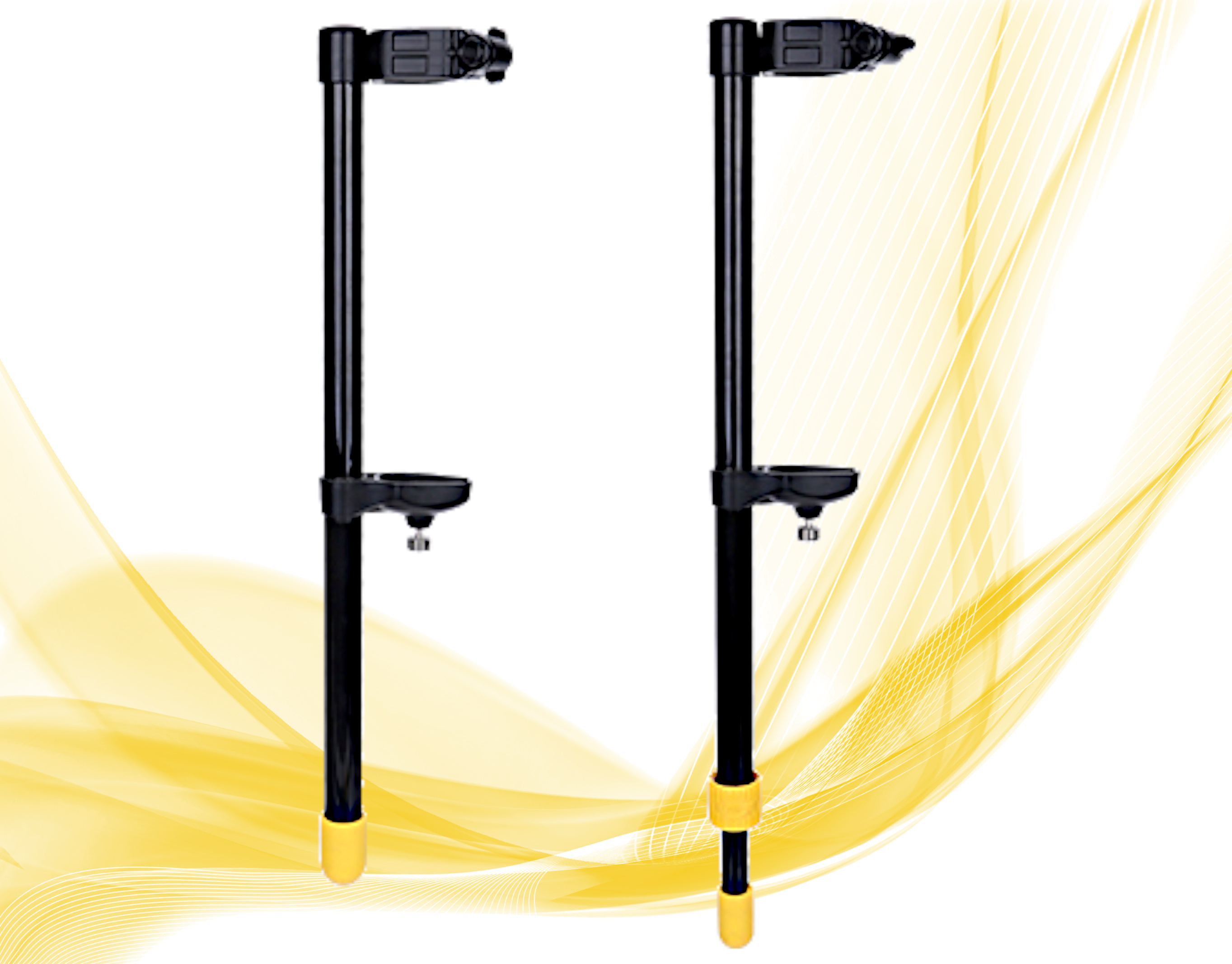

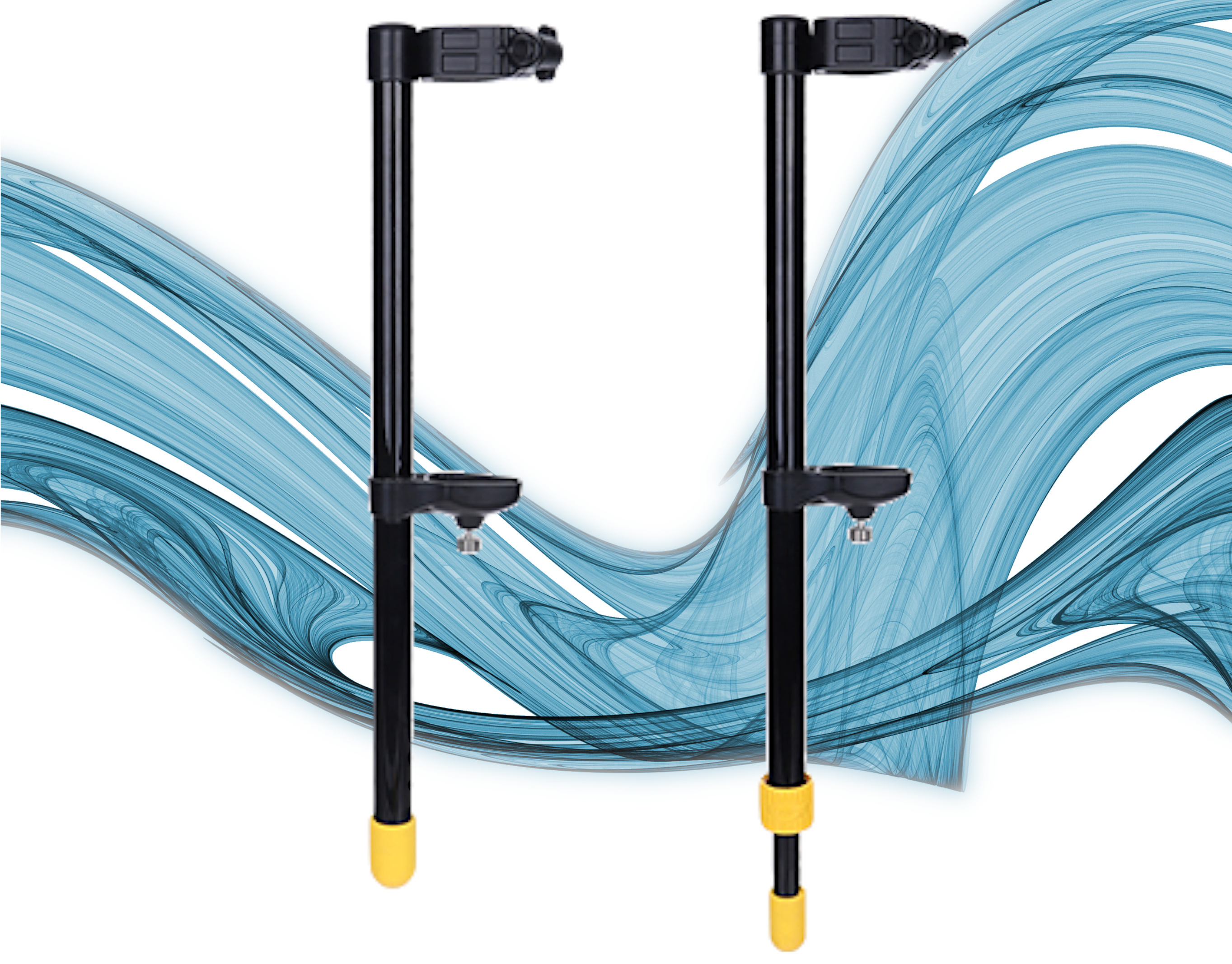

The rod extension is available in two models, depending on the insert length:
Model L: extended by
30cm
Model XL: extended by 91cm
