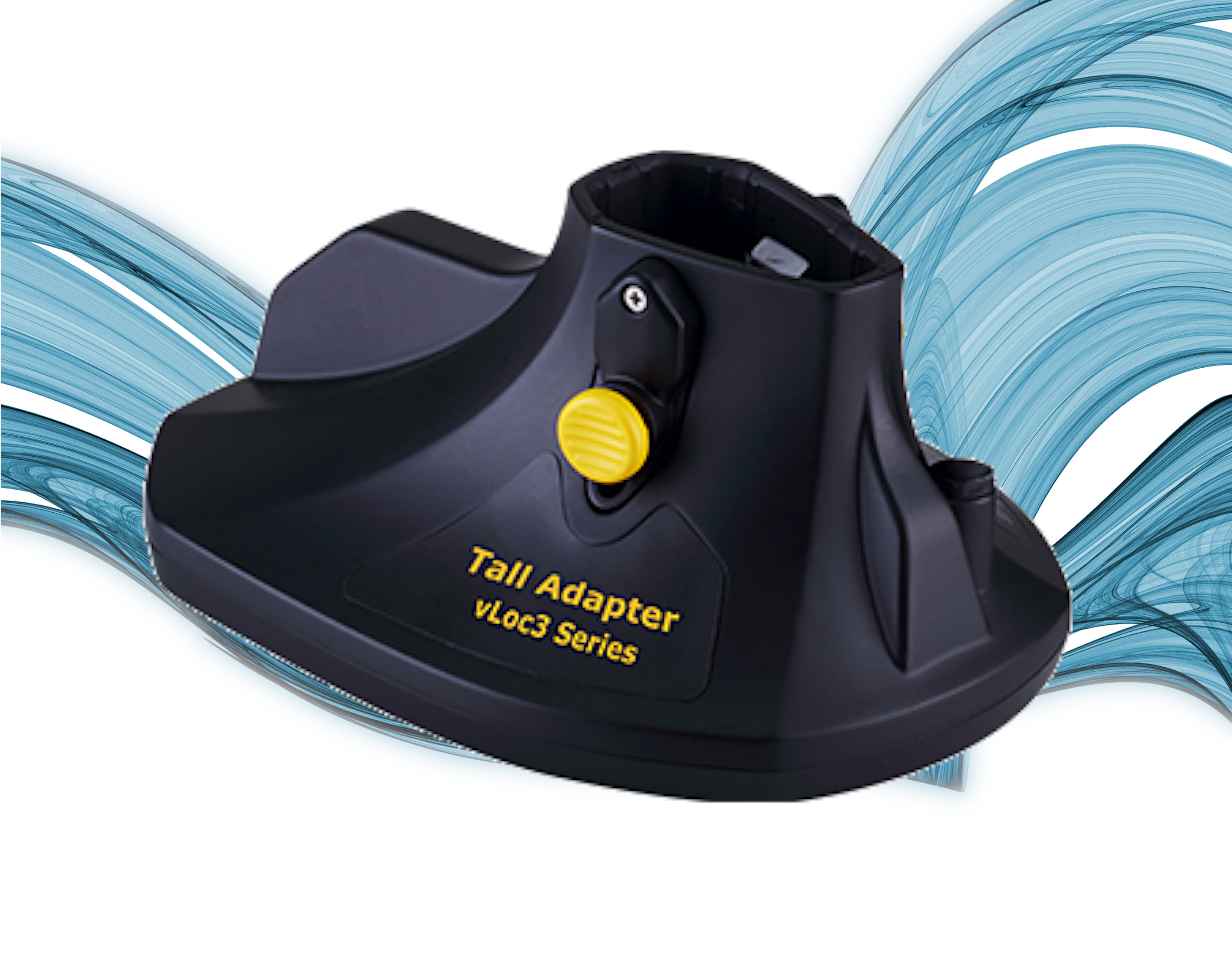

The Pedestal is a passive adapter that can be attached to the lower part of the vLoc3 antenna rod. The Pedestal increases the total height of the vLoc3 receiver by 8.57 cm. The additional height is compensated by a simple menu function to correctly display and store the depth and current measurements. It allows the vLoc3 receiver to stand upright on its own. This is very practical, for example, for locating probes during camera inspections or directional drilling, as the location takes place in steps of three to six meters at the same time as the feed. The vLoc3 can be parked at the appropriate location and the feedback takes place via audio signal as soon as the probe passes the vLoc3 receiver. The Pedestal can be assembled and disassembled in seconds. Simply place the vLoc3 receiver over the stand and push it into the appropriate notch until the latch clicks into place. To remove it, press the two yellow locking buttons and pull the receiver upwards.
