VM 510 FFL+

Product No.:: 1.204.09.00003

1.356,00 EUR

incl. 20% tax

Add to wish list

Ask about product

DESCRIPTION

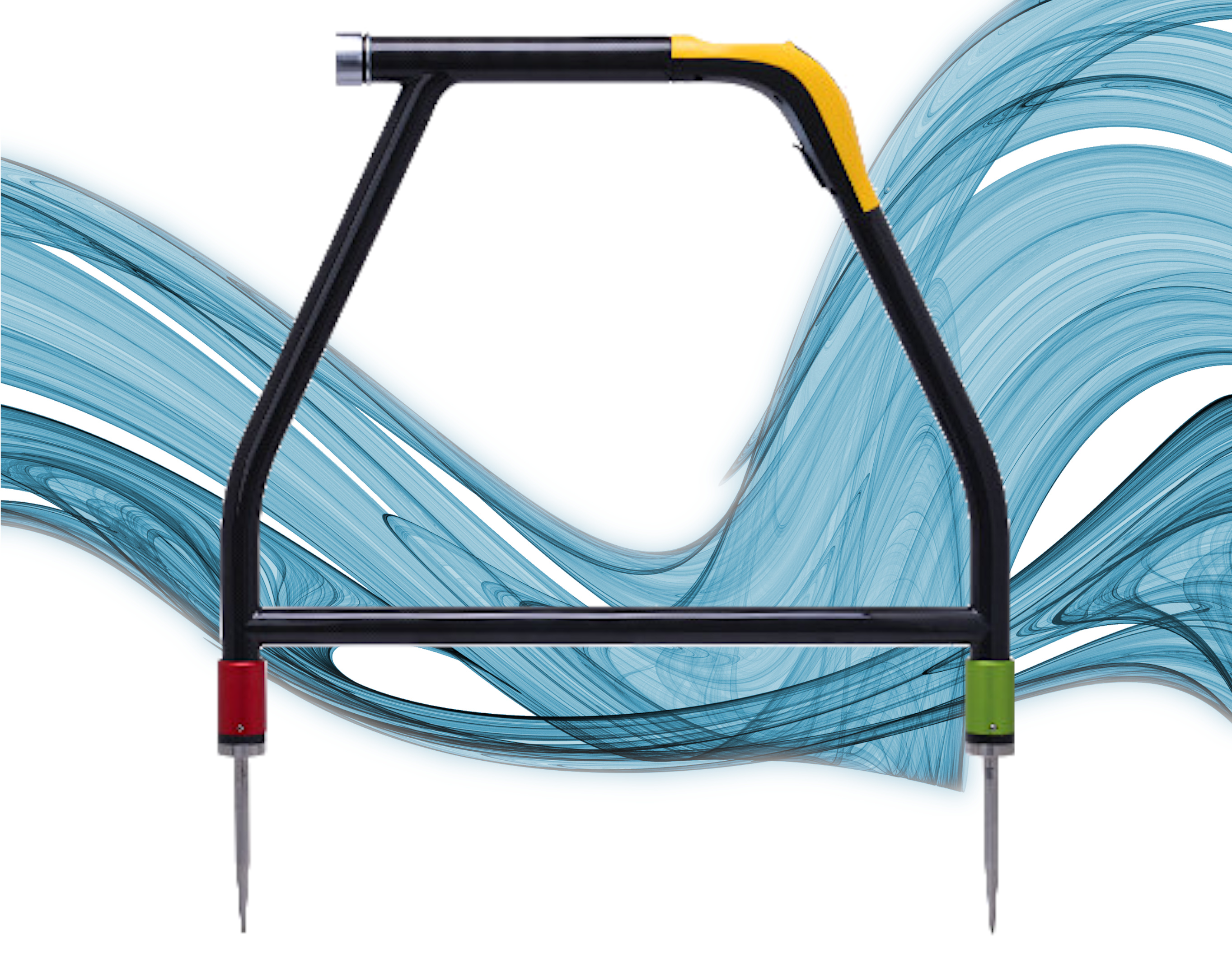

Finding the location of an underground cable fault just became easier with the VM-510FFL+ Standalone A-frame locator. Now locating a suspect cable and finding the fault can be done with the VM-510FFL+ and a compatible transmitter. There is no longer a need for a separate utility locator with cables connecting to it. After connecting a compatible transmitter to the line and placing it in a Fault-Find mode, use the simple to operate four button controls of the VM-510FFL+ to locate and stay on the cable path while pinpointing the sheath or ground fault.

The robust design includes a high contrast LCD with automatic backlight and weatherproof speaker for both visual and audio indicators. The lightweight carbon fiber material is suited for continuous usage on long cable runs to locate the line and pinpoint the faults.

SCOPE OF DELIVERY

A-Frame sheath fault locator
Alkaline batteries
Carrying case

TECHNICAL SPECIFICATIONS

Housing	Carbon fiber glass frame with thermoplastic (ABS) housing
Weight	1,92 kg
Dimension	728mm x 640mm x 74mm (LxBxH)
Frequencies	8kFF (8Hz/8.192kHz with 2.67Hz phase modulation) or FF (3Hz/6Hz/8.192kHz)
Fault location sensitivity	10uA at 1m depth
Accuracy	From 100mm to 3m +/- 5% of depth
Fault location sensitivity	Up to 2MΩ at 1m depth
Display	1.28”; 128x128 black/white; Dot matrix LCD
Acoustic signal reproduction	Pulsing or static tone for left/right guidance
Compatible transmitters	VM-550FF, Loc-5STx, Loc-10Tx, Loc-10SiSTx, Loc3-5/10Tx, Loc3-10SiSTx
Power supply	6 AA alkaline batteries, rechargeable Li-Ion battery with 100-240V AC charger
Uptime	Alkaline: 60 hours of typical use and 21oC, NiMH: With 2300mAh, 45 hours of typical use and 21oC
Protection	IP65 and NEMA 4
connections	Mini USB socket for data transfer and updates
Temperature range	Use: -20 C to 50 C, storage: -40 C to 60 C
Details	Further data can be found under Download Technical Data
