Product No.:
1.222.02.00003
4.464,00 EUR

incl. 20% tax

Add to wish list
Ask about product
DESCRIPTION

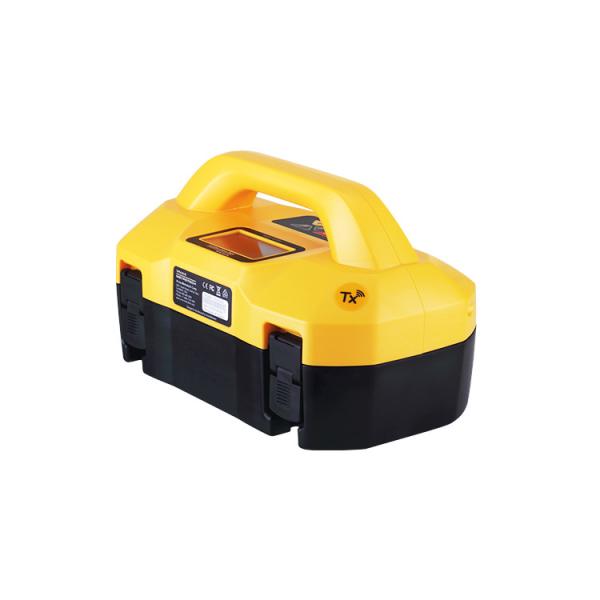

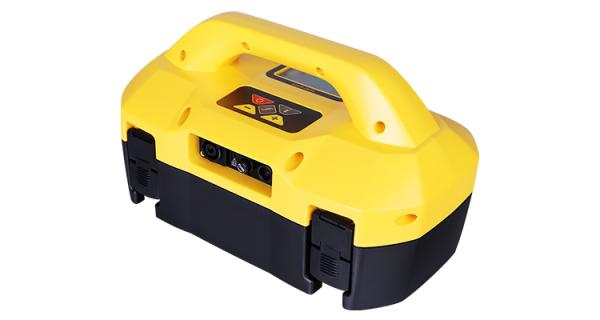

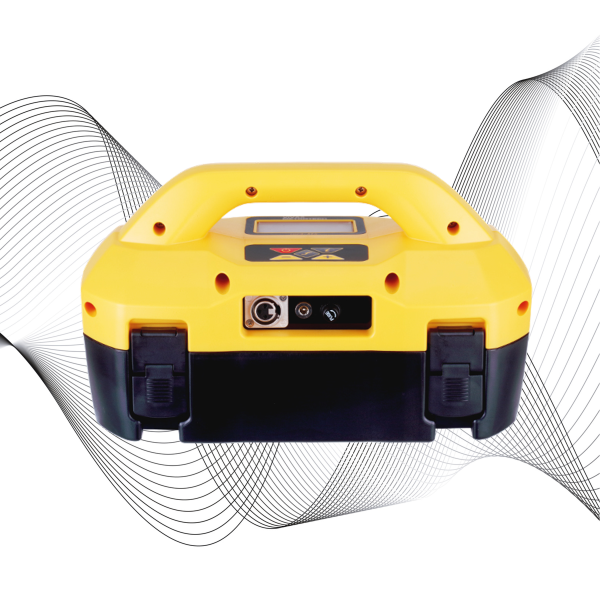

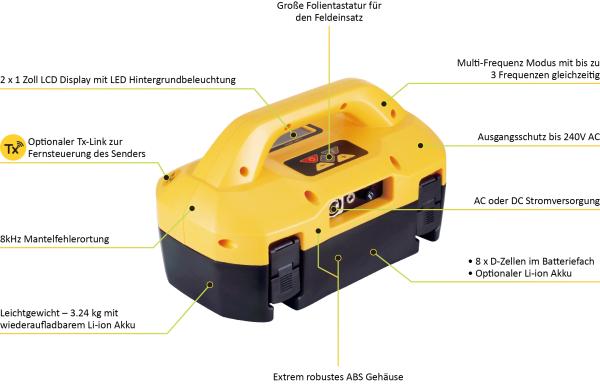

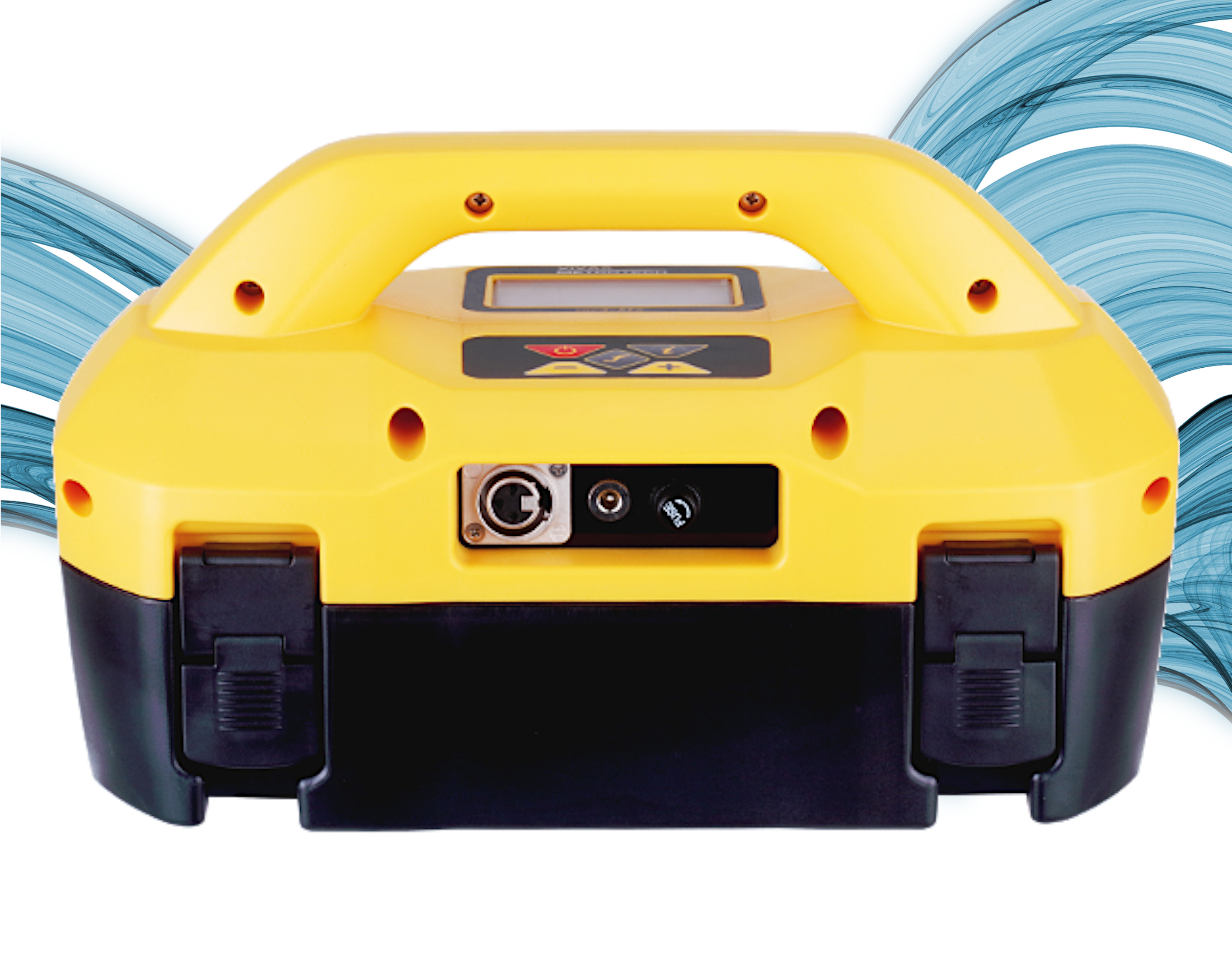

The powerful 25-watt transmitter is the go-to transmitter for cable fault locating, finding holidays on coated pipes, problematic deep-buried lines, and long-distance pipe and cable locating. The Loc3-25Tx is also well suited for applications for cathodic protected longline pipelines and gas distribution in city areas needing a low-frequency high output transmitter.

The Loc3-25Tx transmitter has selectable direct connection frequencies from 32Hz to 9.82kHz and signal clamp frequencies from 8kHz to 9.82kHz. The two-inch by one-inch dot matrix display with LED backlight shows the user output current, volts, frequency and user feedback warnings.

The Loc3-25Tx is packaged in a rugged, ergonomic IP54 housing and is lightweight at only 7.05lbs (3.19kg). The transmitter provides consistent current output up to 4 Amps peak. The transmitter comes in a soft carry bag with a storage pocket for everyday accessories and can be operated while inside the carry bag.

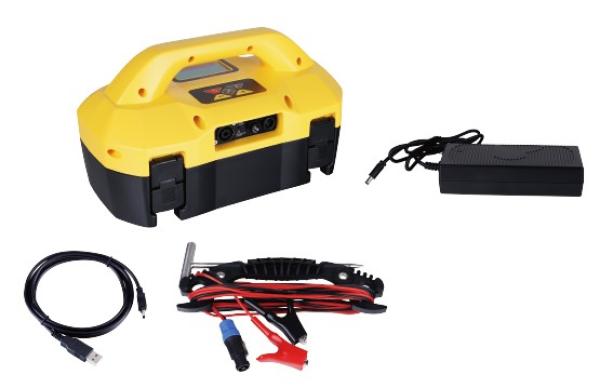

SCOPE OF DELIVERY
  • Transmitter 25 Watt
  • Li-Ion battery
  • charger
  • SD
  • SiS

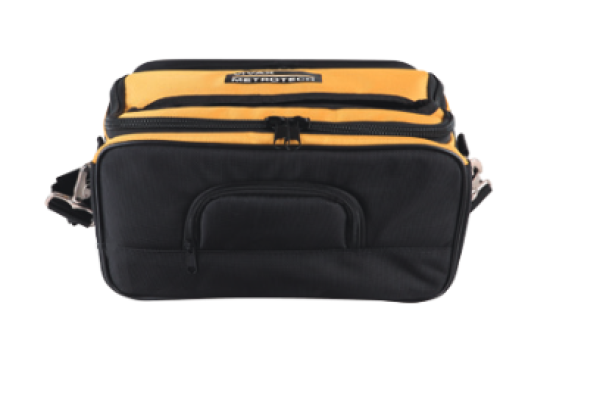

  • Carrying bag
TECHNICAL SPECIFICATIONS
Housing
Robust thermoplastic ABS housing
Weight
from 3.2kg to 3.9kg
Dimensions
332mm x 182mm x 185mm (LxWxH)
Display 2,4” x 1,3“(60mm x 32mm)
LCD dot matrix display with LED backlight
Power supply
Li-Ion battery, 19V 180W DC power supply unit, 12V DC adapter (output power limited to 10W), 12 x D-cell alkaline batteries (optional / output power limited to 10W), 12 x D-cell alkaline batteries (optional / output power limited to 10W).
Operating time
varies depending on model and battery or battery operation, from 6h to 50h
Protection IP54 and NEMA 4 ratings
Connectors
1 x 3-pin XLR female, 1 x fuse (output protection) 1.6A/250V, 1 x mini-USB female,
1 x Jack for charger and external 12V DC power supply
Temperature Use
Usage: -20°C to 50°C
Storage: -40°C to 60°C
Details Further data can be found under Download
CUSTOMER
  • Pipeline detection (long range)
  • Transmission of active signals for locating buried pipes and cables
  • Transmission of active signals for locating insulation faults
  • 4 Amp peak current output
  • 130 Volts peak output
  • Light and portable for everyday use
  • ELF and Low frequencies available minimum distortion
  • Signal clamp compatibility
DOCUMENTS
Loc3 25Tx  (968.41 KB)
Technical Specifications Loc3 25  (467.22 KB)
