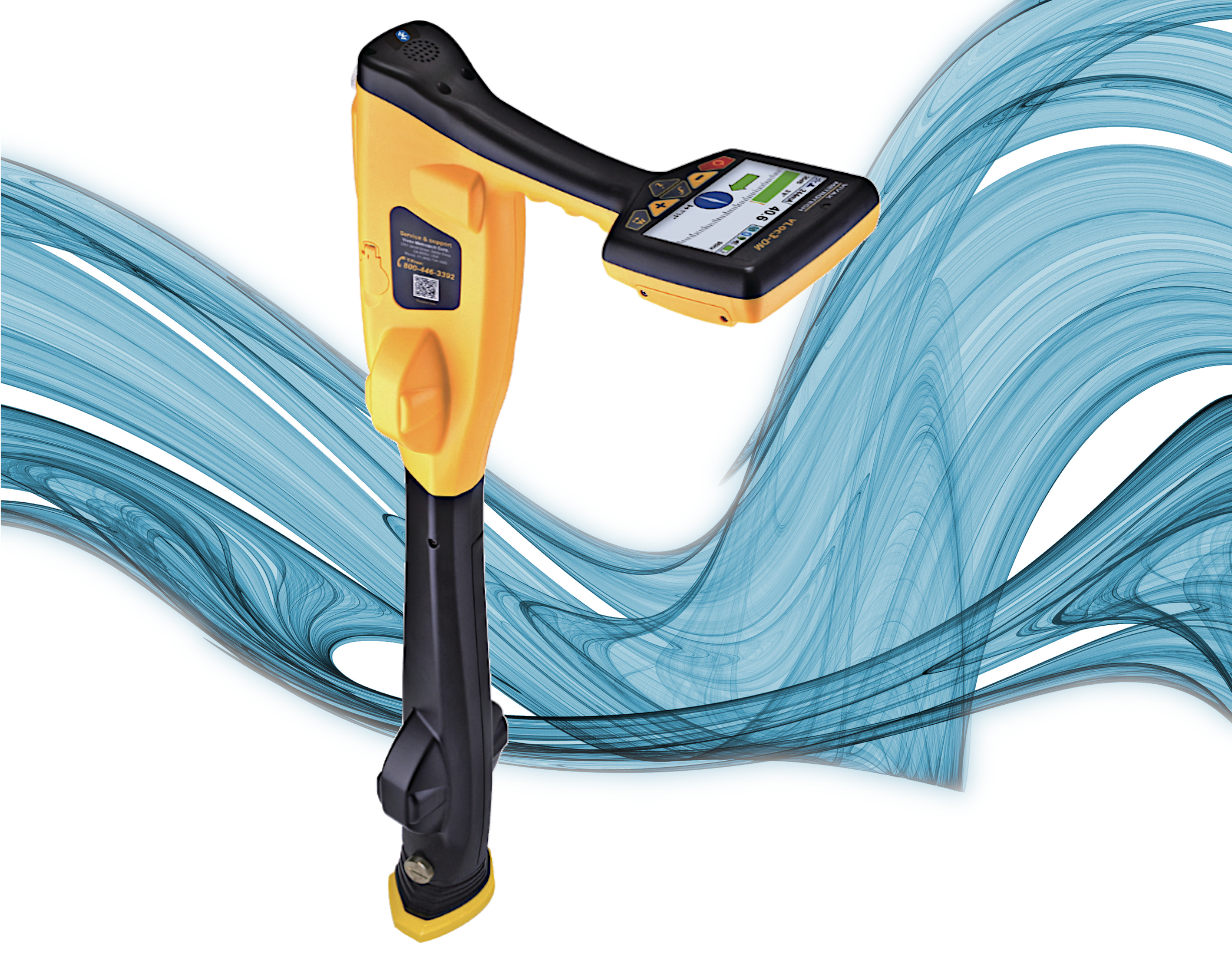

vLoc3 DM

Product No.:: 1.222.01.00004

6.432,00 EUR

incl. 20% tax

Add to wish list

Ask about product

DESCRIPTION

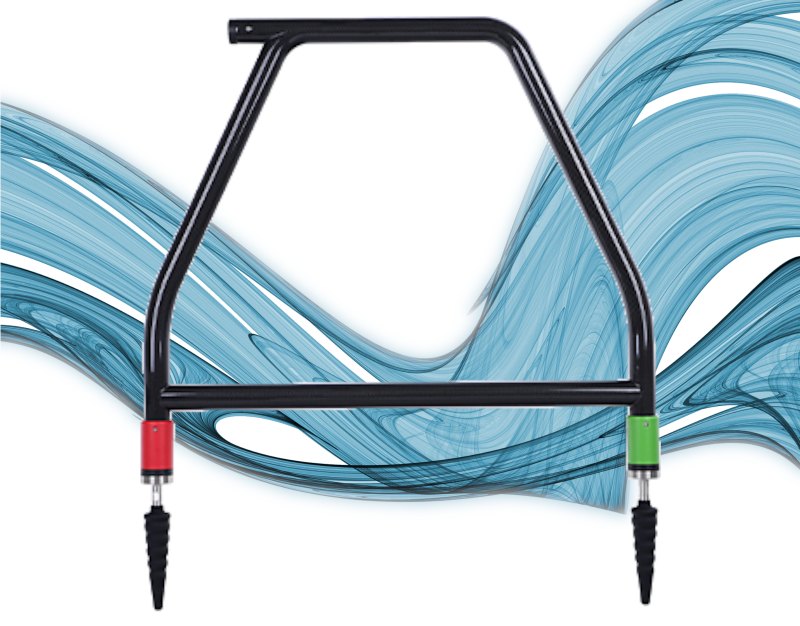

The vLoc3-DM is used to precisely locate pipelines and assist in evaluating pipe coating defects. The system can be used on either transmission or distribution pipes. A complete ACVG survey can be undertaken using the vLoc3-DM and plug-in A-frame. The display on the vLoc3-DM has been configured specifically for pipeline evaluation. Data can be graphed in real time on the receiver, while still on site. The walk back feature highlights the operators position on the graph allowing them to return to a point of interest where further evaluation or an ACVG, A-frame survey can be undertaken.

With two sets of 3D antennas signal distortion is easily detected and displayed on the bright full color display.

Vector mode - for a fully automatic location, where you can also walk next to the line.
Live Scan – for instant measurement of signal distortion
Top View - Shows the relative orientation of the cable at each angle
Audio and vibrating alerts are also user-configurable to warn of flat-lay lines, signal congestion, overhead power lines, and official vibrations.
```

```

TECHNICAL SPECIFICATIONS

Housing	Robust thermoplastic ABS housing
Weight	2,6kg
Dimension	321mm x 116mm x 783mm (LxBxH)
Display	Transmissive 480 x 272 pixel, 16-bit color display LCD, 4.3” / 10cm LCD
Antennas	Two sets of 3D antennas and one low-frequency sensor base
Power Supply	6 AA alkaline batteries, rechargeable Li-Ion battery with 100-240V AC charger
Uptime	Alkaline – 12h at 21°C and typical use, Lithium-ion – 27h at 21°C and typical use (display illumination maximum). Approx. 500 charging cycles. Battery life varies depending on temperature.
Protection	IP65 and NEMA 4
Connections	Accessory socket - for charging the internal batteries and connecting accessories, Mini USB socket for data transfer and updates
Temperature Range	Use: -20oC to 50oC, Storage: -40oC to 60oC
Details	Further data can be found under Download Technical Data
