VM 550

Product No.:: VM-550-1.215.10.00004

MODELL:

948,00 EUR

incl. 20% tax

DESCRIPTION

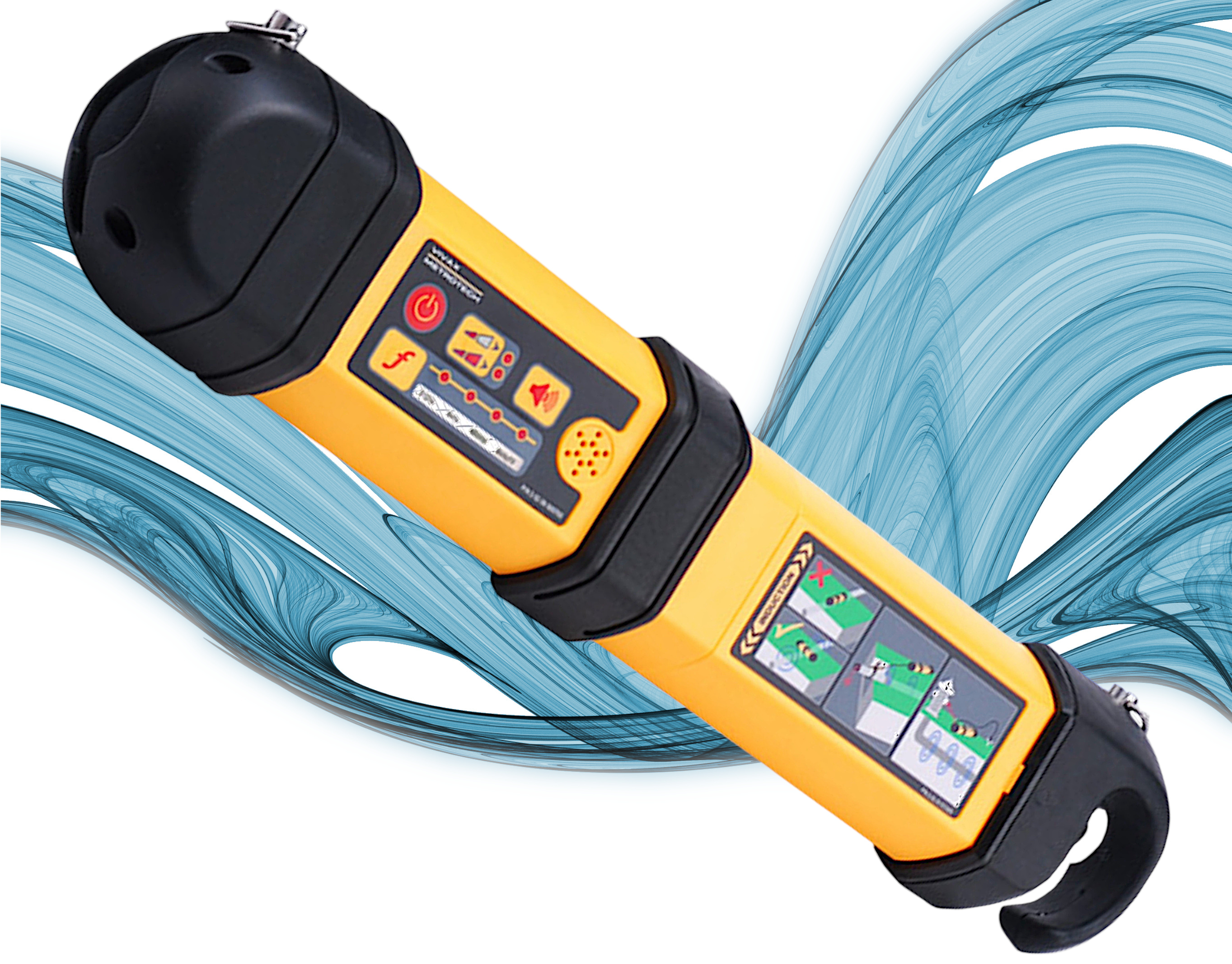

The VM-550FF transmitter meets the needs of companies that want to track lines over short distances. The 1-watt transmitter transmits a locating frequency to a cable or pipeline through direct connection or induction. Optionally available signal clamps can be used to induce the locating signal when there is no way to feed the cable or pipe directly. VM-550FF = induction: 83kHz, direct connection: 640Hz, 8.19kHz, 83kHz and 8.19kHz fault location. The VM-550 transmitter has the additional frequency of 8kHz fault-find to detect grounding faults on cables. In conjunction with the VM-510FFL+ A-Frame, these can be easily located.

MODELVARIANTS

Model FF: 1-watt transmitter, alkaline batteries, connection cable and ground spike
Model kit: VM 550 receiver, 1-watt transmitter, alkaline batteries, connection cable and ground spike, carrying bag

TECHNICAL SPECIFICATIONS

Device	VM 550 FF	VM 550 Kit with receiver
Housing	- Robust thermoplastic ABS housing	- Carbon fiber antenna rod - Robust thermoplastic ABS Gehäuse
Weight	920g bis 1,1kg	640g
Dimensions	460mm x 90mm x 65mm (LxWxH)	880mm x 80mm x 70mm (LxWxH)
Display	LED Display	Dot Matrix, 98 x 64, LCD with backlight
Power supply	4 x alkaline "D" cell batteries Optional Li-Ion battery	2 x AA (LR06) alkaline batteries
Operating time	At 1 watt: Alkaline - 12h and Li-ion - 36h At 21°C and continuous use at 300 ohm resistance. Operating time is highly dependent on the temperature and quality of the batteries	20 h with typical use and 21oC
Operation		Four button membrane keyboard
Protection class	IP54	IP54
Connectors	1 x 3-pin XLR female	1 x Mini USB female for software updates
Temperature range	Useage: -10 C to 50 C, Storage: -40 C to 60 C	Usage: -20 C to 50 C Storage: -40 C bis 60 C
Details	Further data can be found under Download Technical Data

CUSTOMER BENEFITS

The VM-550 Cable Locator is a simple system for cable and pipeline detection.
With passive 50Hz and three active frequencies, the VM-550 system meets all requirements to locate live lines and short cable distances.
The supplied transmitter also has an additional 8kHz fault location frequency. In conjunction with the stand-alone A-Frame VM-510FFL+, sheathing defects can be measured.
The 1-watt transmitter can feed the signal directly into the line via signal clamps, or via the integrated induction antenna.
