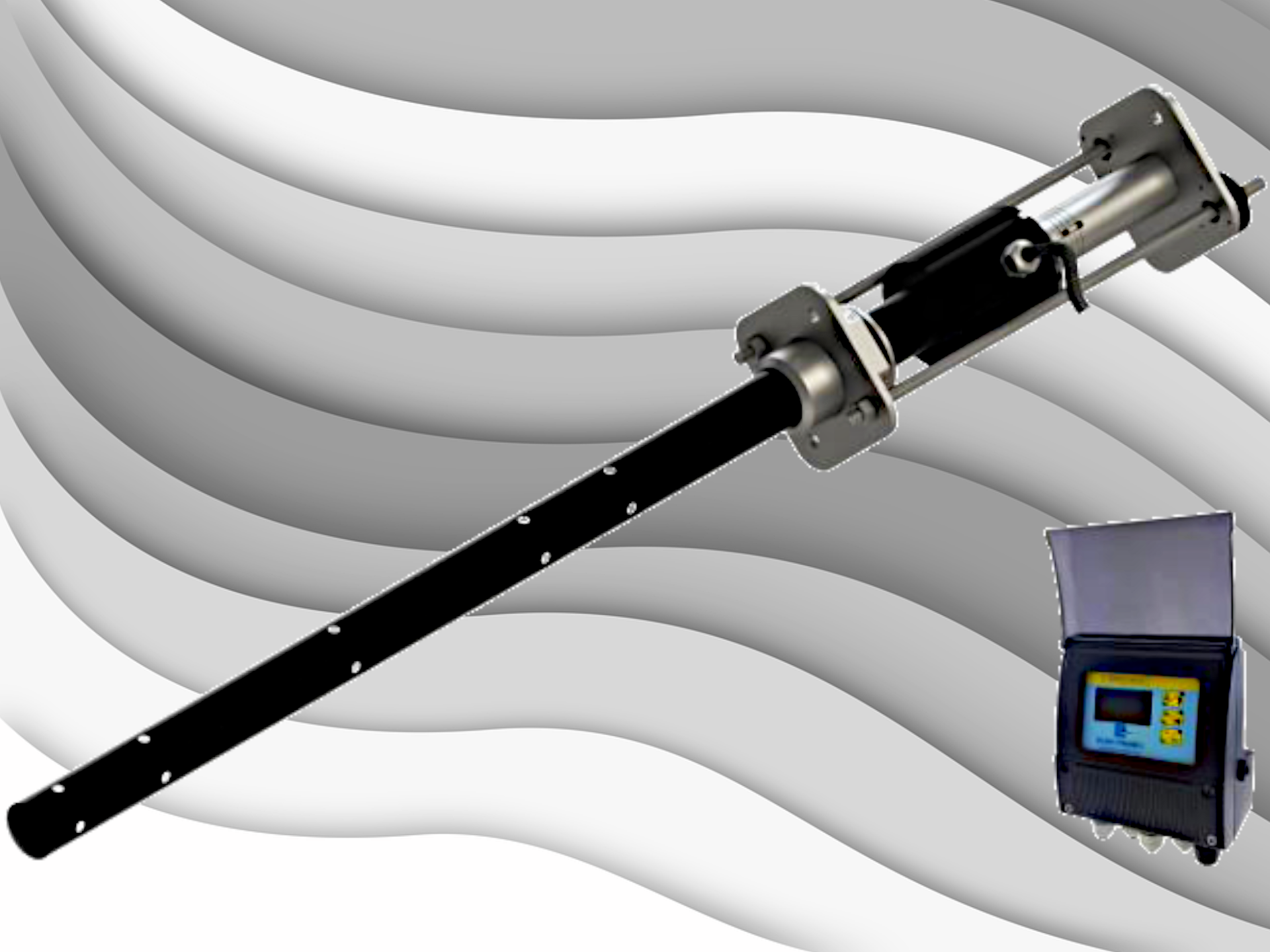

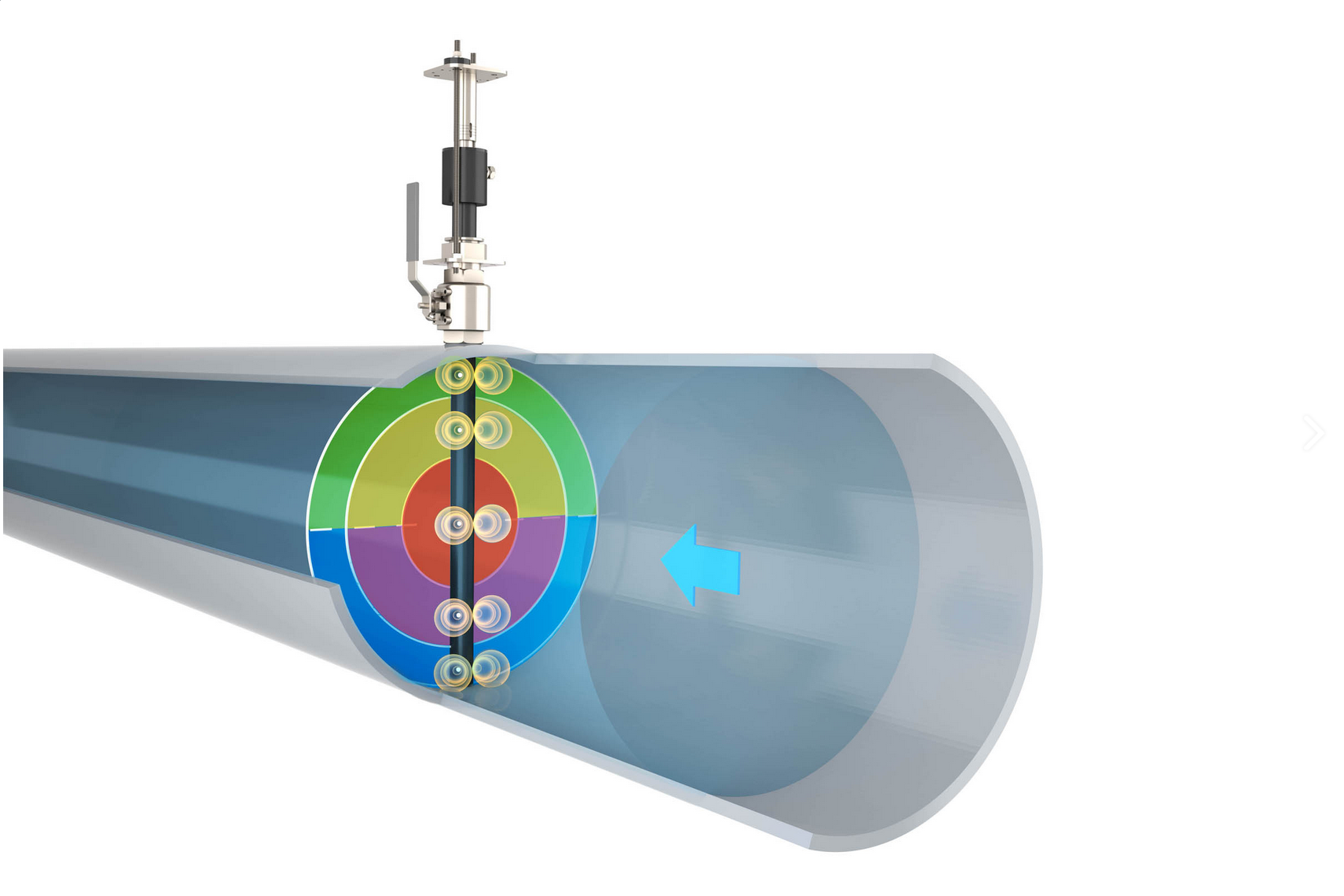

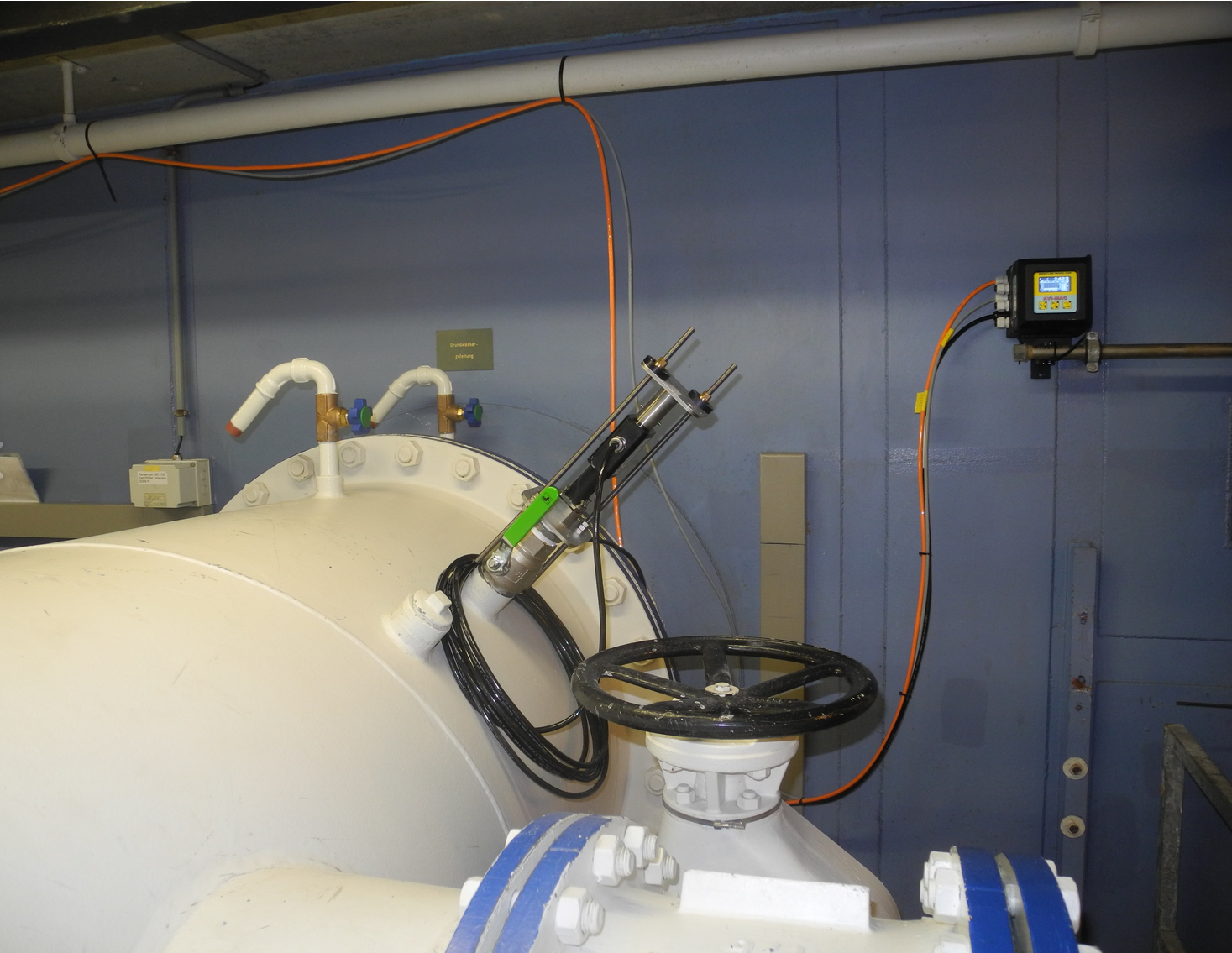

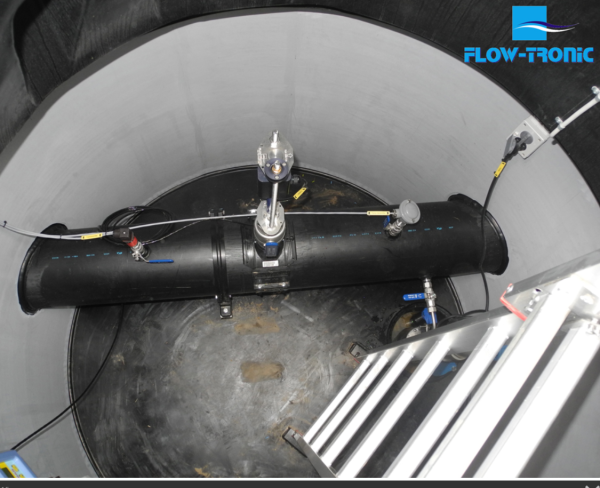

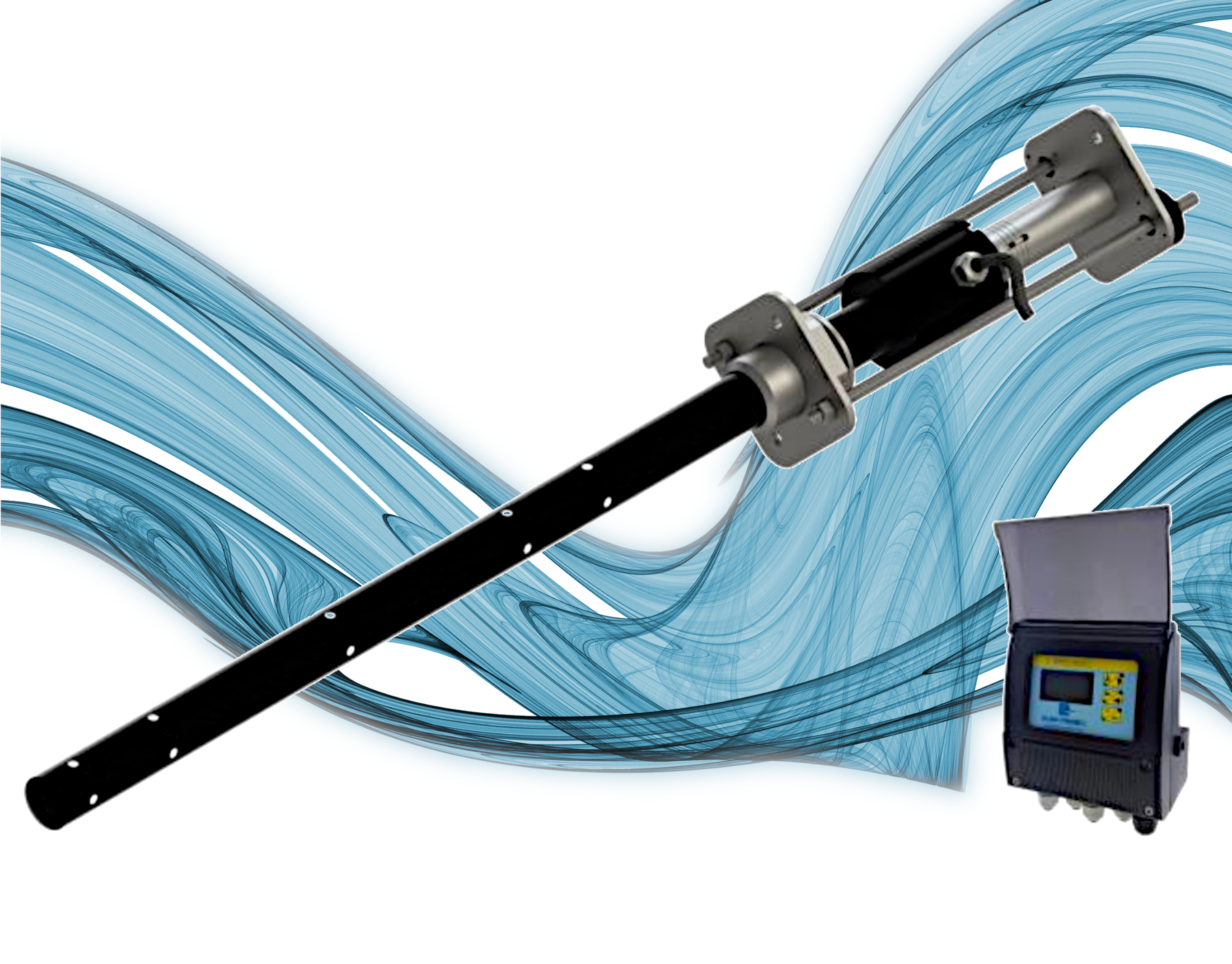

The TORPEE-MAG is a hot tap full profile electromagnetic insertion flowmeter. Multiple electrodes placed across the entire sensor body at equal area, measure and report the average flow rate over the full diameter of the pipe. The specific design of the multi-electrode sensor compensates for variable flow profiles, including swirl and turbulent conditions and allows installation without calibration on site. The TORPEE-MAG can be installed without shutting down, emptying or cutting the pipe (hot tap installation). It does not require welding flanges and installation can be done in pressurized pipelines up to 17 bar.
Cost of installation is largely reduced by eliminating the need for heavy equipment (cranes, etc.) or extensive manpower. The TORPEE-MAG is the most economical flow metering solution for medium and large pipe sensor sizes, reducing drastically installation costs. The TORPEE-MAG fits in confined spaces, can be submerged and offers complete accessibility. It can be removed in pipes under pressure for easy inspection, cleaning, calibrating or verification. It is particularly cost-effective for retrofit application.
The TORPEE-MAG comes in 2 different sizes in order to be used with 1,5 inch or 2 inch ball valves. The 1,5 inch TORPEE-MAG is available for pipe sizes ranging from DN100 up to DN1500. The 2 inch TORPEE-Mag is available for pipe sizes ranging from DN1000 up to DN2500. For larger pipe sizes, please contact FLOW-TRONIC.
Size |
Size TORPEE-Mag 1.5" DN100 to DN1525 - 2 to 5 electrodes
TORPEE-Mag 2" DN500 to DN2500 - 2 to 5 electrodes |
Weight |
depending on sensor size |
Materials |
Sensor body: 316 stainless steel, fiberglass, carbon
Egg armature: 316 stainless steel
Press seal: silicone rubber (EPDM) |
Cable lenghts |
10 m to 100 m available |
Protection class |
IP68 (sensor submersible) |
Certification |
DE, BS 6920 |
Process connection |
Min. 36 mm clear diameter for 1.5" TORPEE-MAG
Min. 48 mm clear diameter for 2" TORPEE-MAG |
Sensor lenght |
dependent on tube inner diameter and installation fitting |
Warranty |
2 years |
Drinking water
- Distribution
- Filter balancing and backwashing
- Pumping stations
- UV dosing
- Well water
- Boosting stations
Waste water
- Wastewater
- Recycle/Refund
Industrial
- Cooling water
- Cooling water
