Pusher cable Standard

Product No.:: SCHUB-STAND-ORG-1.109.03.00021

KABEL:

3.276,00 EUR

incl. 20% tax

DESCRIPTION

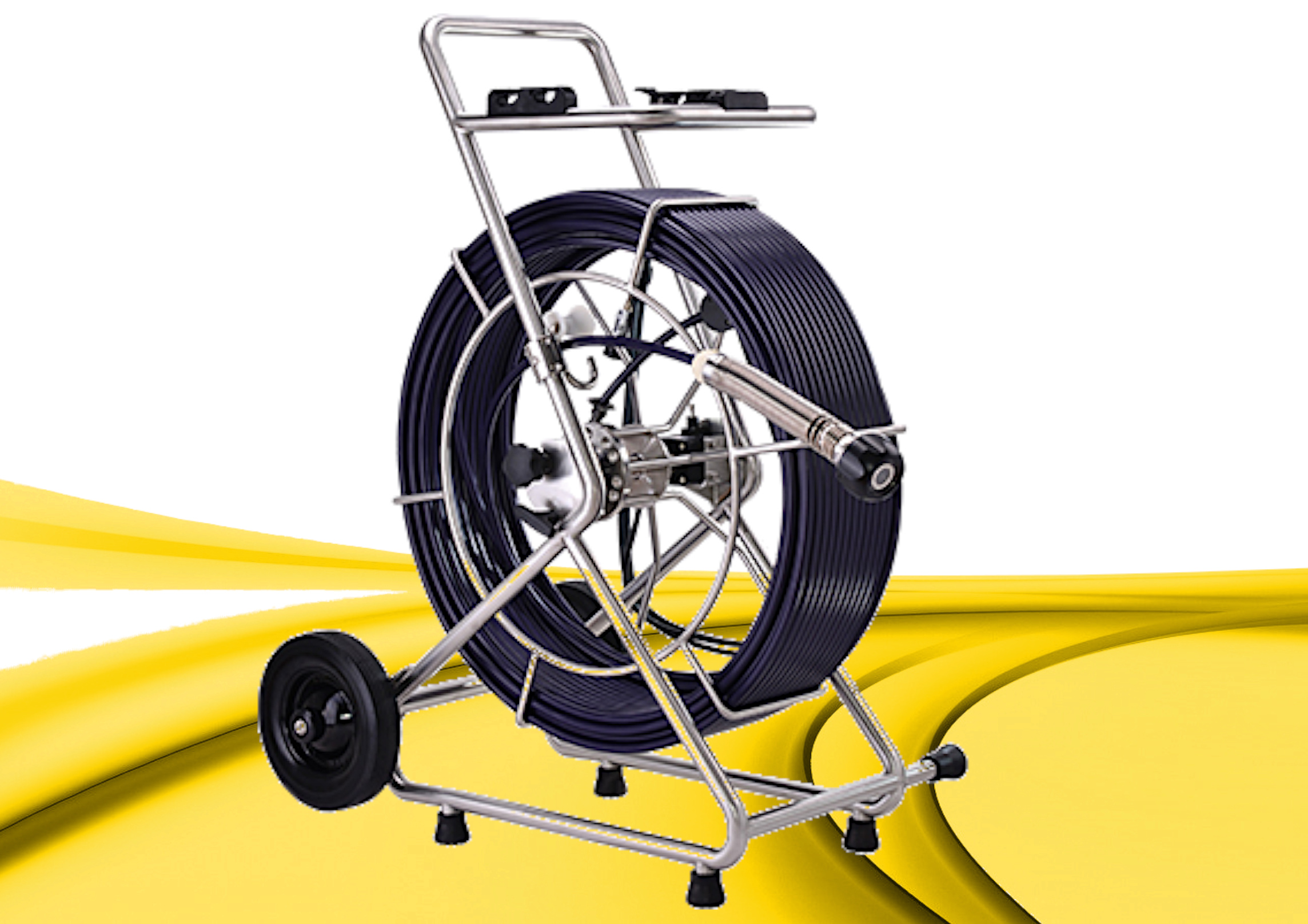

The pusher cable is a compact drum for use with vCam-6 or vCam-5 or vCam MX control modules. The reel consists of a stainless steel tube frame with a carbon fiber push cable drum. The size of the Mini Drum Type-MX allows use in confined spaces and is also designed for special applications, such as on the roof by a roof fan. The smaller diameter pusher cable used on the mini roll allows inspection of lines ranging from 1-1/2 to 4 inches in diameter. The all-stainless steel Type-C reel is available with 200 ft/60m 12mm pusher cable. The reel has full suspension for shock-absorbing movement over curbs or steps.

MODEL VARIANTS

Model vCam Standard: 12mm push cable, connection set standard, cable length 60m, 90m, 120m
Model vCam short: 12mm push cable, connection set short, cable length 60m, 90m, 120m
Model vCam MX: 10mm push cable, cable length 30m, 45m,including insertion protection

SCOPE OF DELIVERY

Reel
connection set standard
12mm push cable
60m, 90m or 120m

Manufacturer: Vivax Metrotech

TECHNICAL SPECIFICATIONS

MODELL	STANDARD	SHORT	MX MINI
Thrust Cable	Fiberglass rod, cable and coax connectors, high density polyethylene jacket
Cable lenght	60m, 90m, 120m	60m, 90m, 120m	30m und 45m
Cable diameter	12mm	12mm	10mm
Breaking strenght	1800kg	1800kg	1800kg
Probe frequencies	32,8kHz, 512Hz, 640Hz
Probe power	1-watt, typically locatable up to approx, 3m depht in cast iron pipes
Locating	with locating transmitter over the entire cable possible
Protection class	IP65
