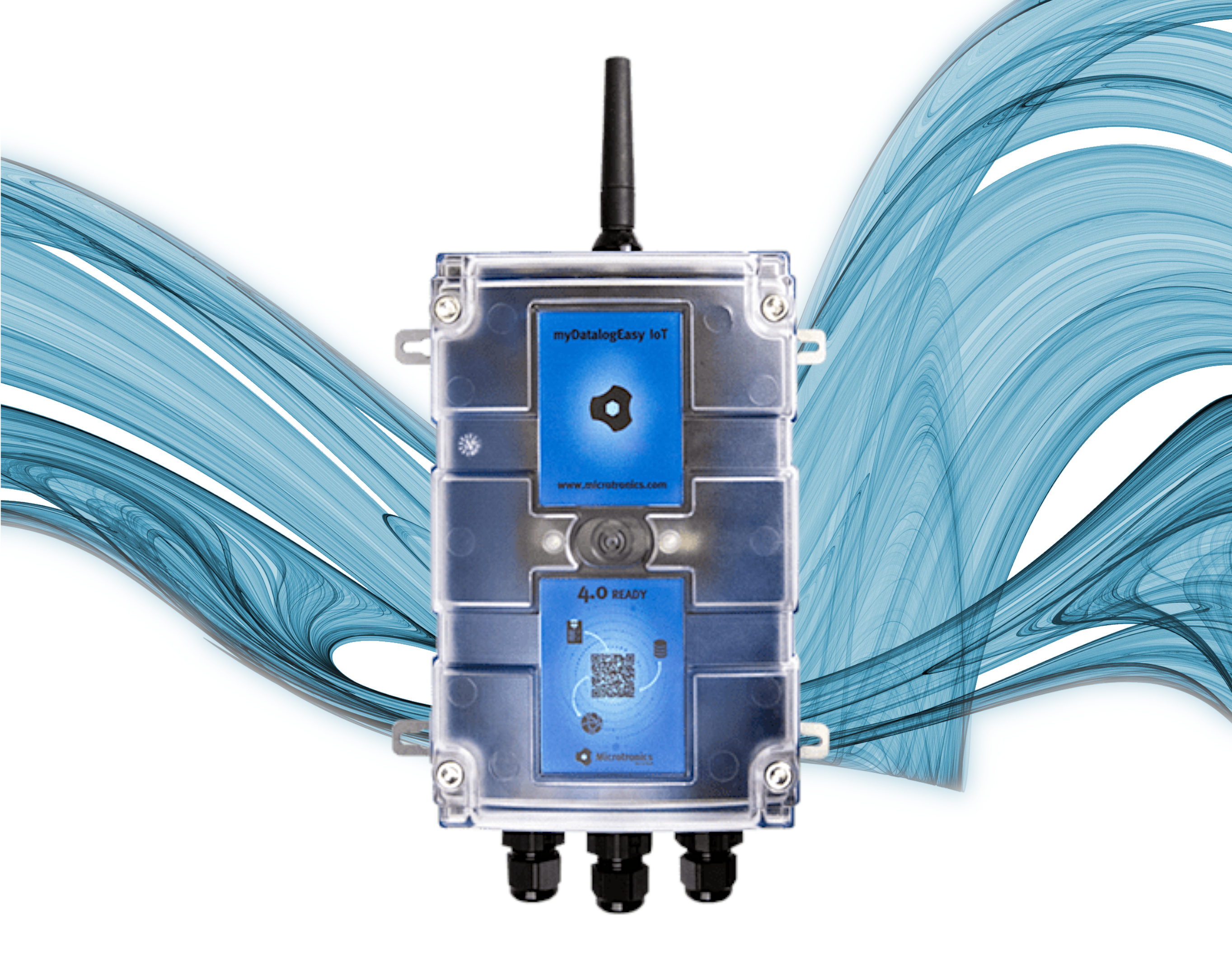

my Datalog EASY IoT

Product No.:: myDatalogEASYIoT

Price on request

Add to wish list

Ask about product

DESCRIPTION

The devices in the myDatalogEASY IoT series feature a modular power supply concept. Adapt the power supply to the conditions on site and choose flexibly between battery, rechargeable battery, and mains operation. The serial-number-based power supply units (PSUs) facilitate traceability.

Three switchable sensor power supplies (switching intervals from 0.1 seconds) are available to power sensors. One switchable sensor power supply can be configured via software within a range of 5–24 V, while the other two provide 3.3 V.

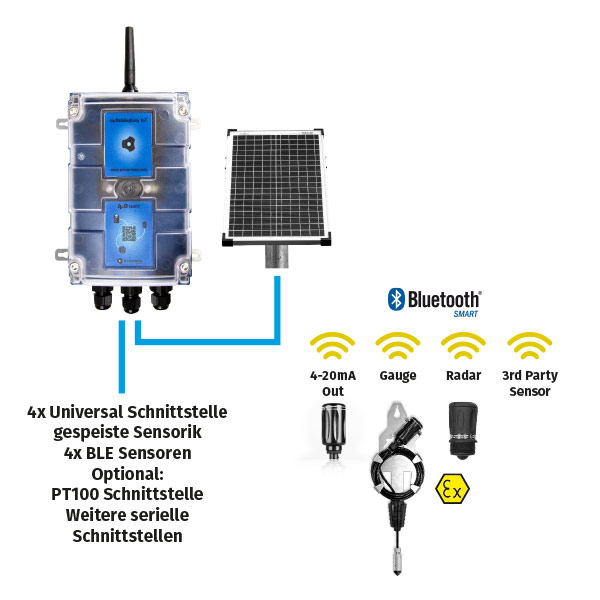

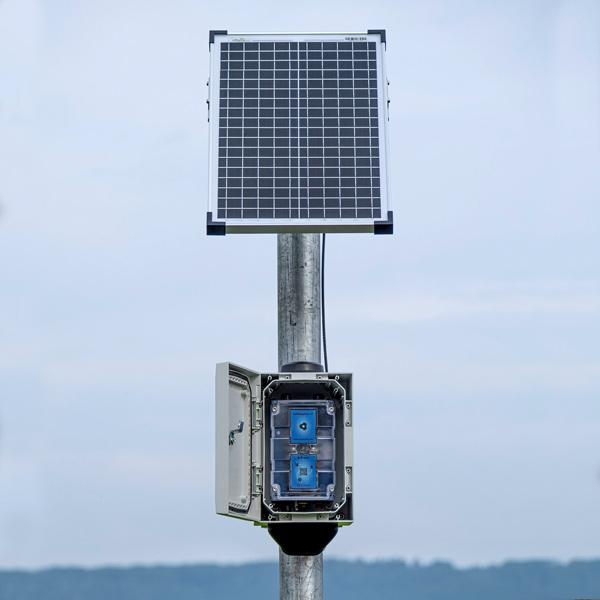

Using an MPP (Maximum Power Point) tracker, the device independently determines the ideal operating point of the PV module, regardless of the size of the solar panel used. By taking environmental factors such as clouds, shading, and temperature into account, the system consistently achieves optimum charging power.

For integration with devices and machinery, the myDatalogEASY IoT offers communication via an RS485 interface. An additional optional feature is an external PT100/PT1000 temperature sensor.

SCOPE OF DELIVERY

myDatalogEASY IoT 2G/M1/NB1 World
3 cable glands (5–10 mm diameter)
3 blind
plugs
Connection plugs (2 × 2-pin, 2 × 3-pin, 1 × 6-pin)
Enclosure cover
4 M6 × 30 hex socket screws
Tool pen
MDN magnet

Please note: An additional power supply unit (PSU – Power Supply Unit) is required for operation.

TECHNICAL SPECIFICATIONS

Specification	Details
Article Numbers	301451 – Option with 2G/3G/4G World modem 301003 – Option with 2G/M1/NB1 World modem
Inputs	4 × analog or digital
Input Configuration 1)	0–20 mA / 4–20 mA 0–2 V / 0–10 V PWM Frequency Digital / Counter
Measurement Range / Resolution 1)	0–20 mA / 4–20 mA: 6.3 μA, burden 96 Ω 0–2 V: 610 μV 0–10 V: 7.97 mV PWM: 100 Hz Frequency: 1 kHz Digital: 100 ms Counter: 1 ms
Sensor Power Supply 1)	2 × switchable 3.3 V power supply (max. 180 mA) 1 × switchable sensor power supply, adjustable from 5–24 V in 1-second increments
Temperature Sensor	1 × PT100/1000 input (feature activation required)
Internal Sensors and Measurements	Supply voltage SOC (State of Charge) Battery life in days Mobile network signal strength Humidity and temperature inside the device
Serial Interfaces / Bus Interfaces 1)	1 × RS232 (feature activation required) 1 × galvanically isolated RS485 (option) 1 × RS485 (feature activation required) 1 × SDI-12 (option)
Outputs	1 × potential-free switching contact
Power Supply	Battery or rechargeable battery Battery or rechargeable battery with PV, or direct power supply from 9–32 V DC PSU power supply concept
Battery Life	Battery life: up to 5 years Rechargeable battery life: up to 2 years
Protection Rating	IP66 / IP68 (IP68: 105 days at 1 m)
Display	RGB LED
Dimensions	130 × 250 × 78 mm (without antenna)
Data Transmission	2G/3G/4G World 2G/M1/NB1 World
