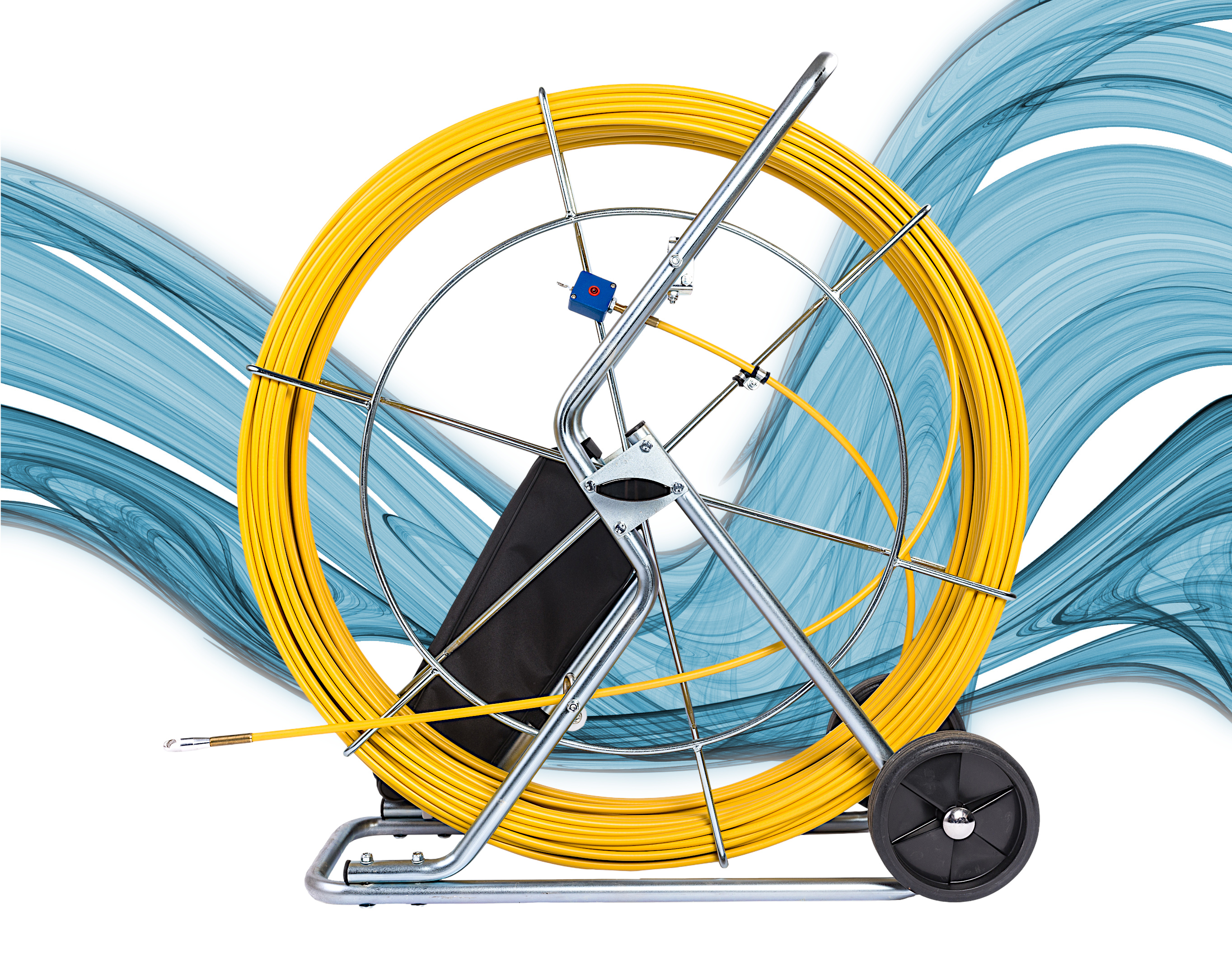

The Ø 11 mm pusher reel has a fully galvanized, bolted tubular steel frame and can be easily moved using the wheels. A finely adjustable brake prevents the push cable from running out of the reel on its own due to its own tension. Glued and pinned initial sleeves, with M12 threads at both ends, enable work in both directions. Includes connection box with 2 sockets for terminating the integrated locating wire and service bag. Minimum bending radius 390 mm. Dimensions 960x370x1010mm.
MODEL VARIANTS
- Cable length 150m
- Cable length 200m
- Cable length 250m
- Cable length 300m
Manufacturer: Vivax Metrotech
