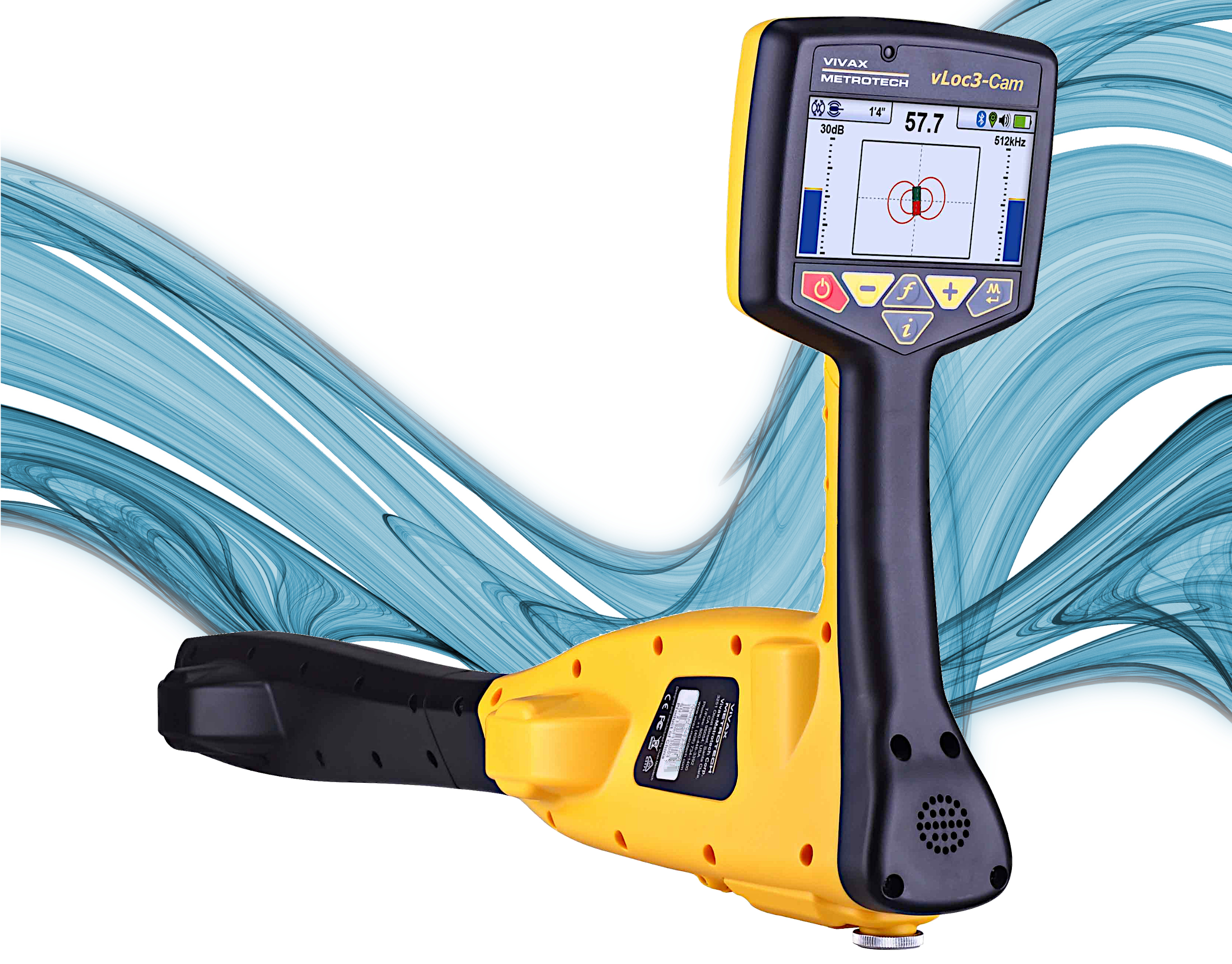

vLoc3-Cam

Product No.:: VLOC3-CAM-ORG-1.225.01.00005

HERTZ:

2.208,00 EUR

incl. 20% tax

Add to wish list

Ask about product

DESCRIPTION

The vLoc3-Cam is the easiest to use sonde locator on the market today. The omni-directional antenna array allows for approaching the sonde from any position. The directional arrows will guide the user first to the front or rear locate point and then directly to the sondes position.

The vLoc3-Cam includes multiple sonde frequencies making it compatible with the major push cameras and crawler cameras on the market. The Pushrod Trace mode shows a second display geared for tracing the path of the pushrod deployed in the pipe or tracing pipes with an optional portable transmitter.

The vLoc3-Cam comes with two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/60 Hz from nearby or overhead power lines. For active locating, with the use of a portable transmitter, the vLoc3-Cam comes with an 83.1kHz frequency for tracing the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets as well as locating ungrounded small diameter drop wires and inducing signals through the soil, onto services when direct connecting is not an option.

MODEL VARIANTS

Model with 32.8kHz
Model with 83.1kHz

SCOPE OF DELIVERY

With alkaline batteries

TECHNICAL SPECIFICATIONS

Housing	Robust thermoplastic ABS housing
Weight	2,1kg
Dimension	321mm x 124mm x 676mm (LxBxH)
Display	4.3" (10cm) 16-bit color display 480 x 272 pixels, sunlight-ready, automatic backlight
Power supply	6 AA alkaline batteries, Rechargeable Li-ion battery with 100-240V AC charger
Uptime	Alkaline batteries: 12h at 21°C and typical application Lithium-ion battery: 27h at 21°C and typical application
Frequencies	Probe Detection: 512Hz, 640Hz, 8.19kHz, 9.82kHz, 33kHz (32.8kHz), 83.1 kHz Active cable and push cable location: 33kHz oder 83.1 kHz (Selection must be made when ordering) Passive current detection: 50Hz und 60Hz Passive radiolocation: 10kHz bis 22.7kHz Bandwidth
Signal display	Probe Locator View (360° Directional arrow, probe symbol) Cable and push cable location (classic view with bar and compass)
Protection	IP65
Warranty	24 months (extendable to 3 years)
Details	Further data can be found under Download Technical Data
