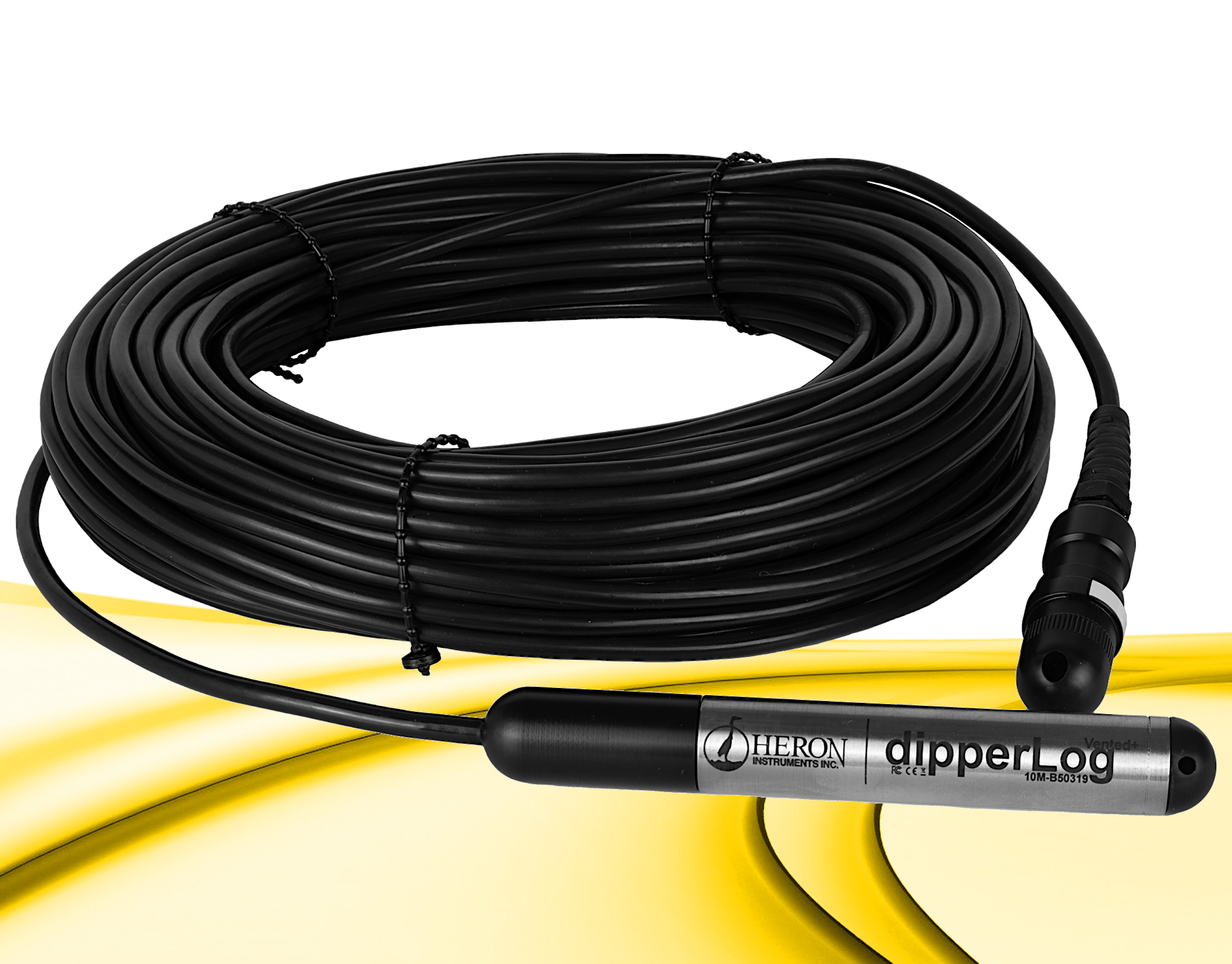

Vented Data Logger – Direct Read Model

Product No.:: dipperLog VENTED

Price on request

Add to wish list

Ask about product

DESCRIPTION

Heron Instruments’ Vented Data Logger incorporates a gauged transducer that measures pressure exempt barometric influences (no barometric logger required). The dipperLog VENTED is removable from the vented cable, allowing easy field replacement. Just connect your laptop or Windows Tablet at the wellhead.

MODEL VARIANTS

Logger: dipperLog VENTED+
Pressure Range: 10 m/30 ft, 30 m/100 ft, 60 m/200 ft, 120 m/400 ft

Manufacturer: Heron Instruments Inc.

TECHNICAL SPECIFICATIONS

Reel Size	Standard (<300 m/1000 ft), Large (>300 m/1000 ft)
Memory	128,000 readings
Download Speed	19,200 bps (128,000 readings downloads in 6 minutes)
Factory Calibrated Ranges	10 m (aprx. 30 ft), 30 m (aprx. 100 ft), 60 m (aprx. 200 ft), 120 m (aprx. 400 ft)
Operational Range	10m (aprx. 30 ft), 30 m(aprx. 100 ft), 60 m (aprx. 200 ft), 120 m (aprx. 400 ft) All ranges are representative of use at sea level. Use above sea level will result in higher operational range
Overpressure Rating	2X Factory Calibrated Range
Operating Temperature	-20°C to 80°C
Battery Life (Readings)	up to 5 million (depending on usage)
Battery Life (Max)	up to 15 Years (depending on usage)
Wetted Material	316 Stainless Steel, Delrin® & Rubber Buna (PFAS free Wetted Materials)
Length	14.5 cm (5.7")
Diameter	22 mm (9")
Weight	170 g (37 lbs)
