vCam-6 HD inspection system SHORT

vCam-6 HD inspection system SHORT

Product No.:: VCAM634KZ-VC6-C200B-D46HDP-EU

MODELL:

10.860,00 EUR

incl. 20% tax

DESCRIPTION

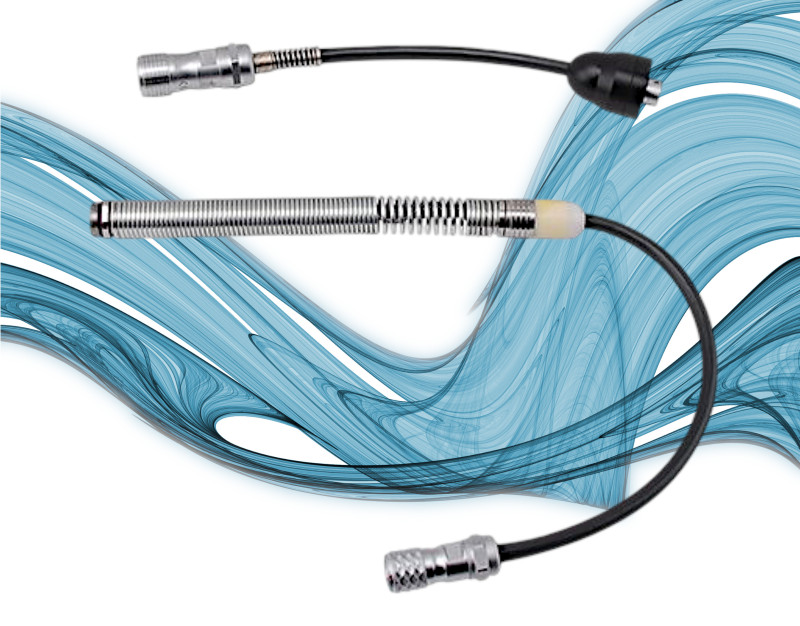

The vCam-6 HD video inspection camera is characterised by its robust construction and is designed for daily use by sanitary companies, plumbers, pipe cleaning companies and construction companies. The push camera offers all the features of a modern inspection system and enables pipe and sewer inspections in the house connection area or of main pipes with clear and detailed full HD video and image recordings at the touch of a button. Direct text input via keyboard, creation of audio commentaries, recordings with distance, date and time stamp or the unique camera head test socket are just some of the advantages. The vCam-6 HD can be operated independently for up to 6 hours with the standard Li-ion battery or simply in 230V or 12V mains operation. The high user-friendliness and reliability of the system ensure trouble-free operation.

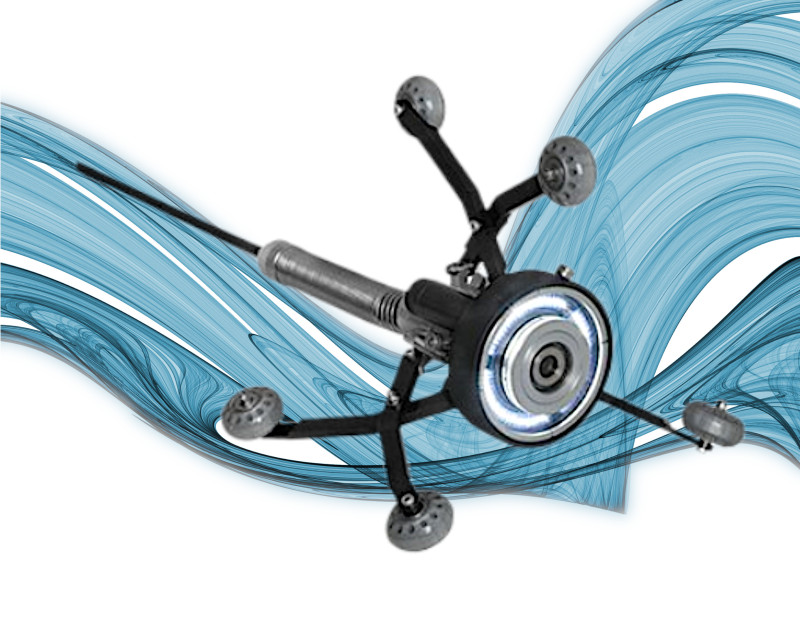

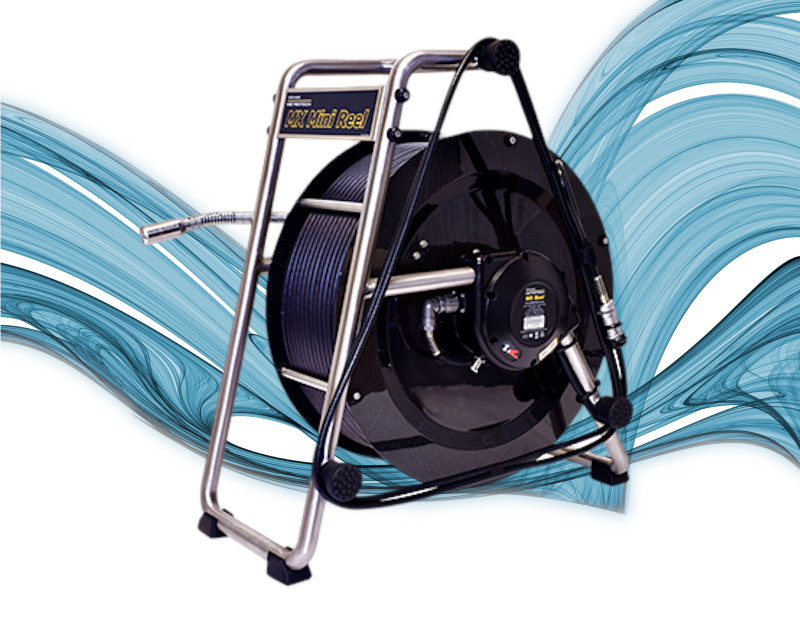

Expand the application possibilities of the vCam-6 HD with the compact MX mini reel (push cable length 30 m or 45 m) for small pipelines or the size-adjustable camera roller carriage with LED lighting for large pipe diameters of 150-300 mm. With the free vCam Live View app, the camera image can be streamed to mobile devices and text can be entered.

MODEL VARIANTS

vCam-6, CP reel 60 m, camera head D34-HD, connection set short
vCam-6, CP reel 90 m, camera head D34-HD, connection set short
vCam-6, CP reel 120 m, camera head D34-HD, connection set short
vCam-6, CP reel 60 m, camera head D46-HD, connection set short
vCam-6, CP reel 90 m, camera head D46-HD, connection set short
vCam-6, CP reel 120 m, camera head D46-HD, connection set short

SCOPE OF DELIVERY

Manufacturer: Vivax Metrotech

TECHNICAL SPECIFICATIONS

Camera heads	D34-HD	D46-HD
Application	3" - 6" / 76 - 152 mm	4" - 8" / 100 - 203 mm
Dimension	34 x 73 mm	46 x 69 mm
Luminosity	12,87 lumens	44,02 lumens
Resolution	1920 x 1080 p
Housing	Stainless steel case with sapphire glass lens
self-leveling	Yes
Max. compressive strength	bar	11
Focus Point	cm	20
viewing angle	Degree	96
CP-Haspel
Dimension	710 x 55 x 910 mm (L x B x H)
Material	Stainless steel tubular frame reel
Weight 60 m	kg	26
Weight 90 m	kg	31
Weight 1200 m	kg	36
Protection	IP
vCam-6 Control unit
Dimension	360 x 150 x 320 mm (L x B x H)
Weight	kg	5,5
Display	9.7"/24 cm, sunlight readable (1024 x 768 p)
Uptime	4 h	6 h when probe is off
Protection	IP 54	when the lid closed
Warranty	1 Year	exchance program

The vCam-6 control unit offers Full-HD (1080p) resolution only when using D34-HD and D46-HD camera heads. When using the camera heads D18-MX, D26-MX or D34-C/M, D34 and D46-CP, videos and photos are recorded in SD resolution 720x576p.

CUSTOMER BENEFITS
