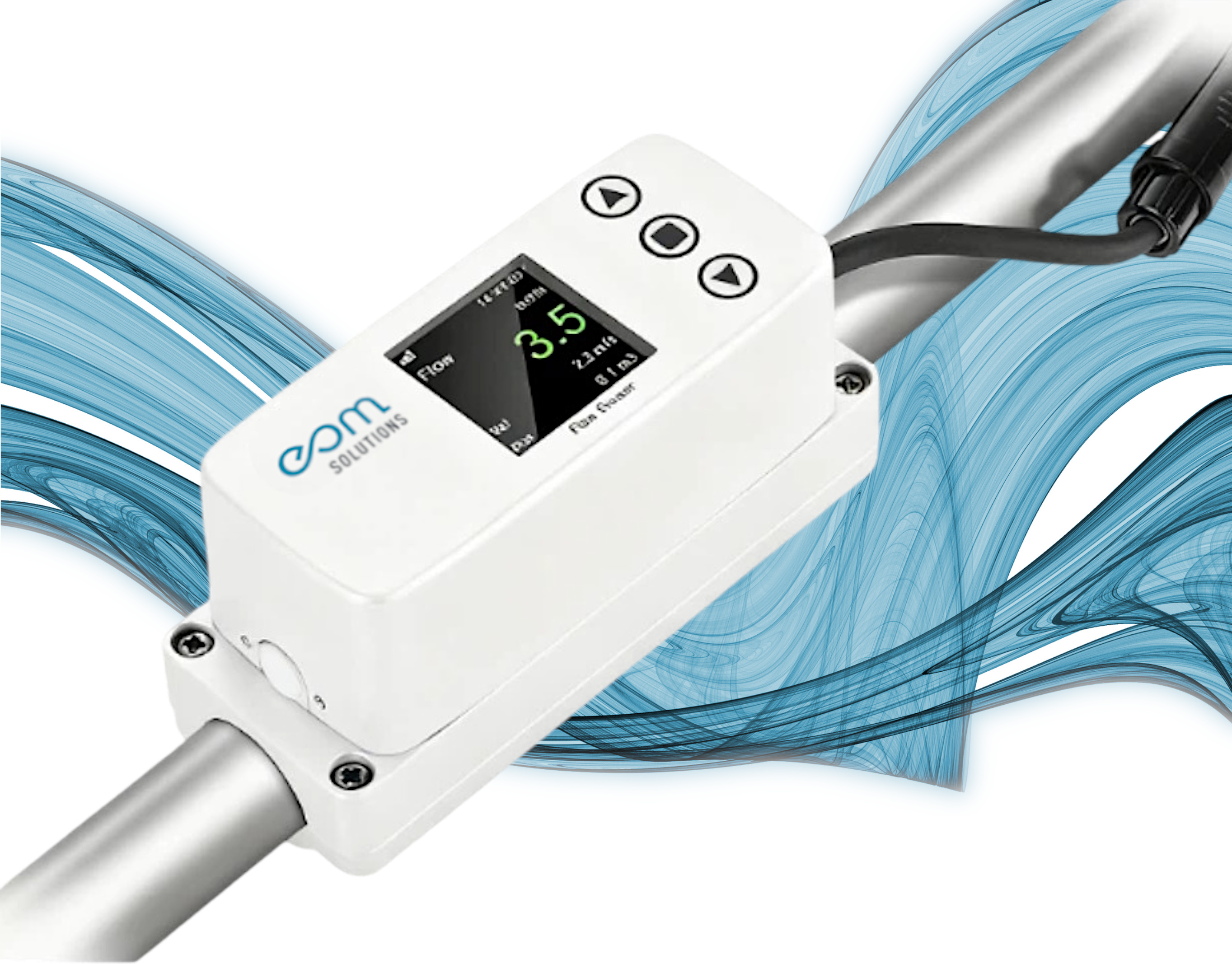

The UDM 5 flow meter is a compact, non-invasive solution for precise measurement of water flow in pipelines. Thanks to ultrasonic clamp-on technology, installation is carried out without any intervention in the pipe system. The device offers a measurement accuracy of ±2%, supports 4–20 mA as well as RS485/MODBUS, and is suitable for pipe sizes from DN15 to DN50 made of stainless steel, PVC, copper, or PPR. The color LCD display and easy integration make the UDM 5 ideal for industrial applications.
| Measurement principle |
Ultrasonic (Transit-Time), clamp-on |
| Measuring range |
0.03 – 5.0 m/s |
| Accuracy |
±2% (0.3 – 5 m/s) |
| Repeatability |
0.4% |

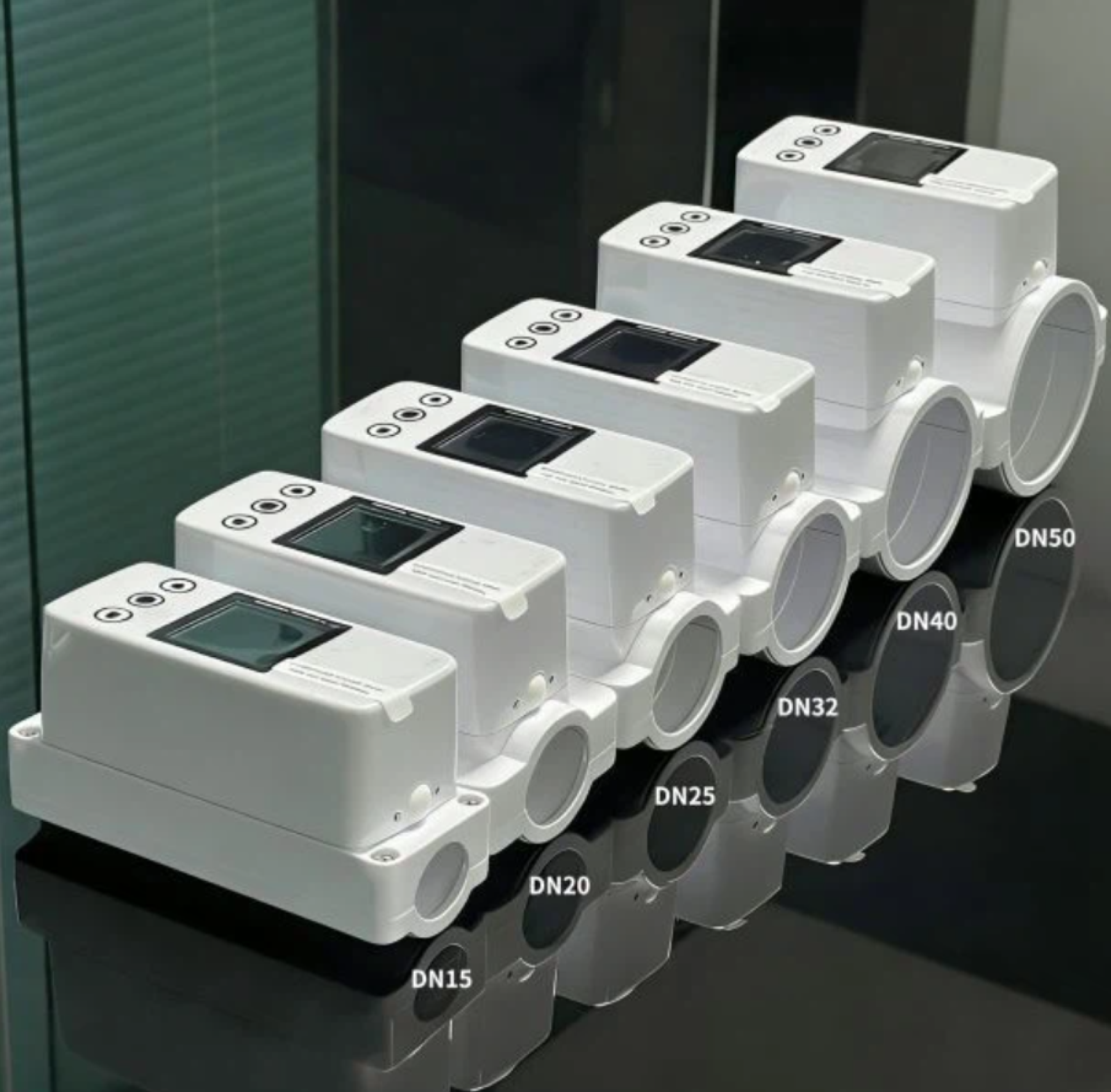

| Pipe sizes |
DN15 – DN50 |
| Pipe materials |
Stainless steel, PVC, copper, PPR |
| Output |
4–20 mA |
| Communication |
RS485, MODBUS |
| Power supply |
10–36 VDC / 500 mA |
| Display |
1.54" LCD, 240×240 pixels |
| Protection rating |
IP54 |
| Temperature range |
-10 °C to +50 °C (electronics), 0 °C to +60 °C (sensor) |
| Humidity |
0–99% RH (non-condensing) |
| Housing |
PC plastic |
| Installation |
Clamp-on, non-invasive |
| Cable length |
2 m (6-core) |
