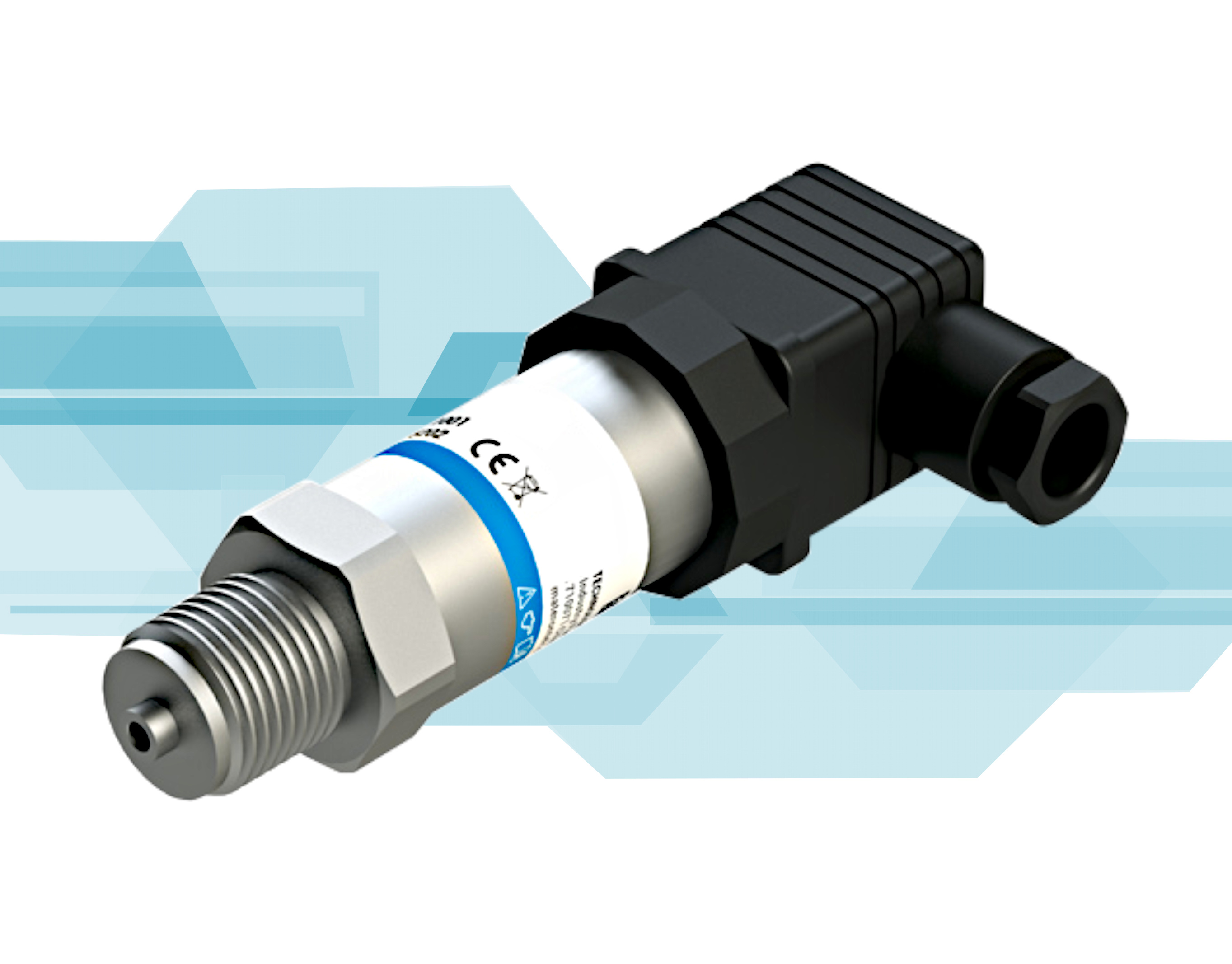

1040 Pressure transmitter
1040 Pressure transmitter
1040 Pressure transmitter

1040 Pressure transmitter

Product No.:
EPT1040
Price on request

Add to wish list
Ask about product
DESCRIPTION
The EPT1040 pressure transmitter can be used in the field of process technology and monitoring, hydraulics and building technology. Thanks to the

stainless steel housing and the ceramic sensor, pressures in the range of 2 bar to 200 bar can be measured. Due to the factory calibration and temperature compensation, the pressure transmitter always delivers precise measurement results.
TECHNICAL SPECIFICATIONS
Measuring range 2 mbar to 200 bar
Accuracy ±0.25 % FS (typical) to ±1 % FS max.
Calibration Factory calibration and temperature compensation
Case Stainless steel
Sensor Ceramic (96 % AL2O3)
Oil filling none
Operating temperature -40°C to 85°C
Protection IP65
Outputs Interfaces 4 to 20 mA, 1 to 5 VDC, 0.5 to 4.5 VDC

Output signal and supply Connection Exit Supply
  2-wire 4 to 20 mA 10 to 30 VDC
  3-wire 1 to 5 VDC 10 to 30 VDC
  3-wire 0.5 to 4.5 VDC 10 to 30 VDC

Insulation resistance 100 MΩ at 100 VDC
EMC Test IEC61000-6-2/IEC61000-6-3
Reverse polarity protection No damage - no function
CUSTOMER BENEFITS
  • Measuring ranges from 2bar to 200bar
  • Calibrated and temperature compensated
  • Gauge pressure
  • Low cost
  • HVAC controls
  • Refrigeration
  • Air compressors
