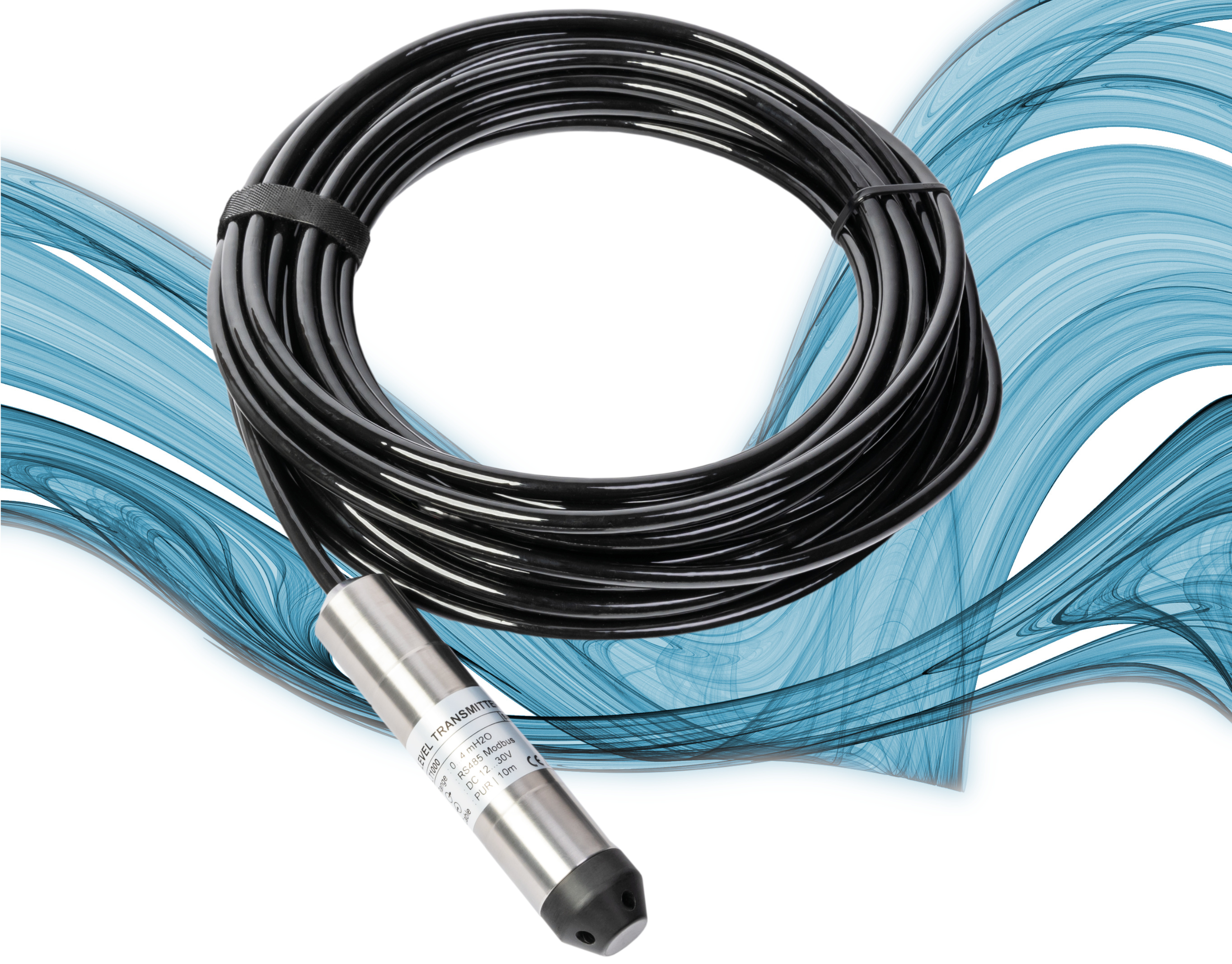

The LT1000 pressure probe is a gauge pressure probe and is specially designed for use in the field of drinking water supply as well as for groundwater and surface water monitoring. Thanks to the
stainless steel housing and the high-quality workmanship of the probe, it can also be used under adverse operating conditions and up to a depth of up to 120 m. Due to the factory calibration and temperature compensation, the probe always delivers precise measurement results.
Depending on the configuration, the probe can be connected to data loggers and process control systems via various interfaces.
| Measuring range |
2 mWs to 120 mWs |
| Accuracy |
± 0,25 % FS (typical) to. ± 0,50 % FS |
| Calibration |
Factory calibration and temperature compensation |
| Housing |
Stainless steel |
| Protection |
IP68 |
| Cable |
PUR, PE or PTFE |
| Outputs interfaces |
4 to 20 mA, 1 to 5 VDC, 0.5 to 4.5 VDC & Modbus RTU |
- Drinking water systems
- Monitoring of groundwater
- Service water tanks
- Rain overflow basin
- Measuring ranges from 2mWs to 120 mWs
- IP68, Submersible level measurement
- Low-cost, simple level measurement
- Accuracy: ±0.25%FSO(Typ.)
- Calibrated and temperature compensated
- Stainless steel pressure sensor
- Output 4...20mA, DC1...5V, DC 0.5...4.5V, MODBUS RTU
