The percussion drilling set is perfect for soils with bricks, large or many stones, for example in urban areas or industrial sites. With this drilling set you get beautiful clean samples without the use of lubricants. The set is equipped with extremely robust rods and gouges. The different diameters allow efficient, fast and light work. Please note that this set does not replace cutting with a diamond core and is not intended for fibrous material. Do not use the set on dry glacial loam, porosity is required.
RD32-connection

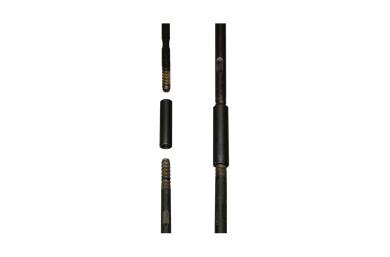

The percussion drilling sets are equipped with RD32-connection extension rods and percussion gouges are screwed together using a coupling sleeve. The RD32-connection is used in firmer, dryer soils. The RD32-connection takes very little time to attach and take off. The RD32-rods connect together by means of a coupling sleeve, which means that the massive extension rods have the same diameter along the entire length, which makes them very strong.
SCOPE OF DELIVERY
- Gasoline driven percussion hammer with accessories and wooden transport box
- Various extension rods
- Coupling sleeves

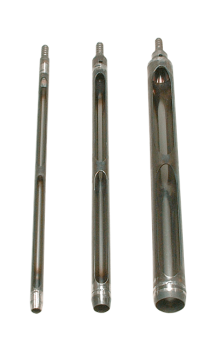

- Percussion gouges (combination type for various types of soil) in various diameters and lengths
- Core sampler for PVC sample tubes and foil liners
- Mechanical rod puller
- Universal casing and rod puller clamp
- Rod puller extension for the extraction of the first gouge
- Crow bar
- Accessories to empty and clean the gouge
- Lifting jack with lever and chain
- Utility probe for safe cable finding
- Stairs for use with the percussion hammer in the field
- Aluminium transport cases
For larger depths we offer (Sonic)drilling and CPT equipment.
Manufacturer: Eijkelkamp Soil & Water B.V.
