The stainless steel peat sampler is pushed into the soil by hand. Half a cylinder is used to contain the obtained sample. The cone of the peat sampler is massive, distinguishing it from the standard gouge auger.
The sample containing section is sealed off by a plate (fin) that can pivot around the axle in the middle of the sampler and that is fitted with a cutting edge on one side. Having arrived at the correct sampling depth the complete sampler is given half a turn clockwise (180°). During the turning the fin remains in position, which allows the half cylinder to be filled and closed again. The half circular sample cylinder is kept closed by the other side of the fin during extraction.
The peat sampler can only be used in flabby and very soft soils. To achieve maximum stability the connections between the T-handle, the extension rods and the bottom part are conic threaded connections. Please note that due to the thick tip, limited penetration into stiff material is possible and water plant roots will be pushed aside.
The peat sampler enables to take undisturbed samples from soft soils at predetermined depths on behalf of:
- Environmental studies
- Visual interpretation of a soil layer
- Soft sediment sampling
- Palaeontological research

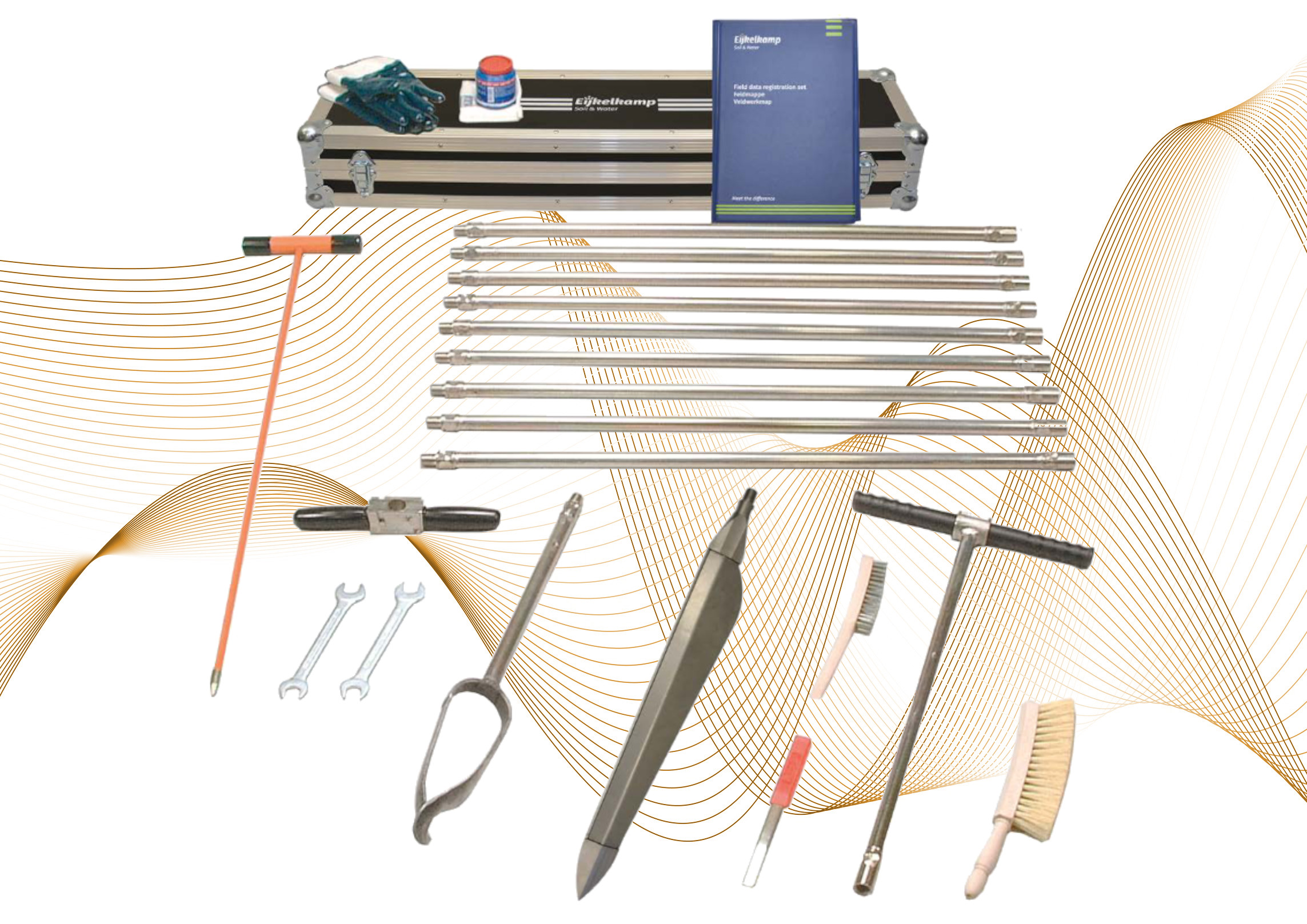

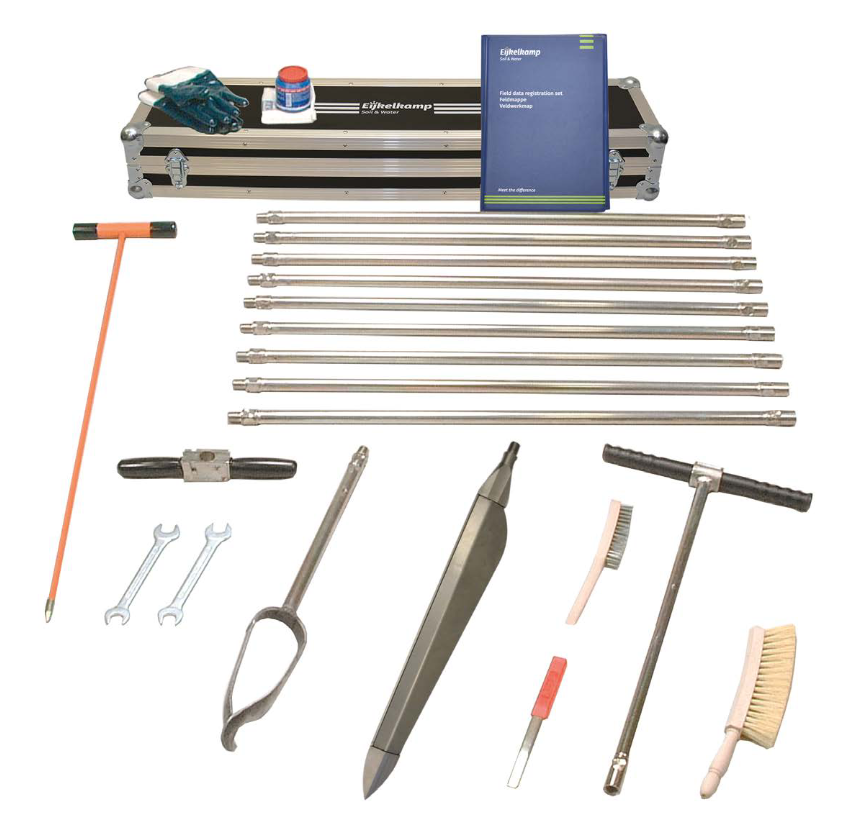

SCOPE OF DELIVERY
- Edelman auger
- Peat sampler
- Push-/pull handle
- Tools
- Maintenance kit
- Fibre glass utility probe
- The whole is kept in a sturdy aluminium transport case
