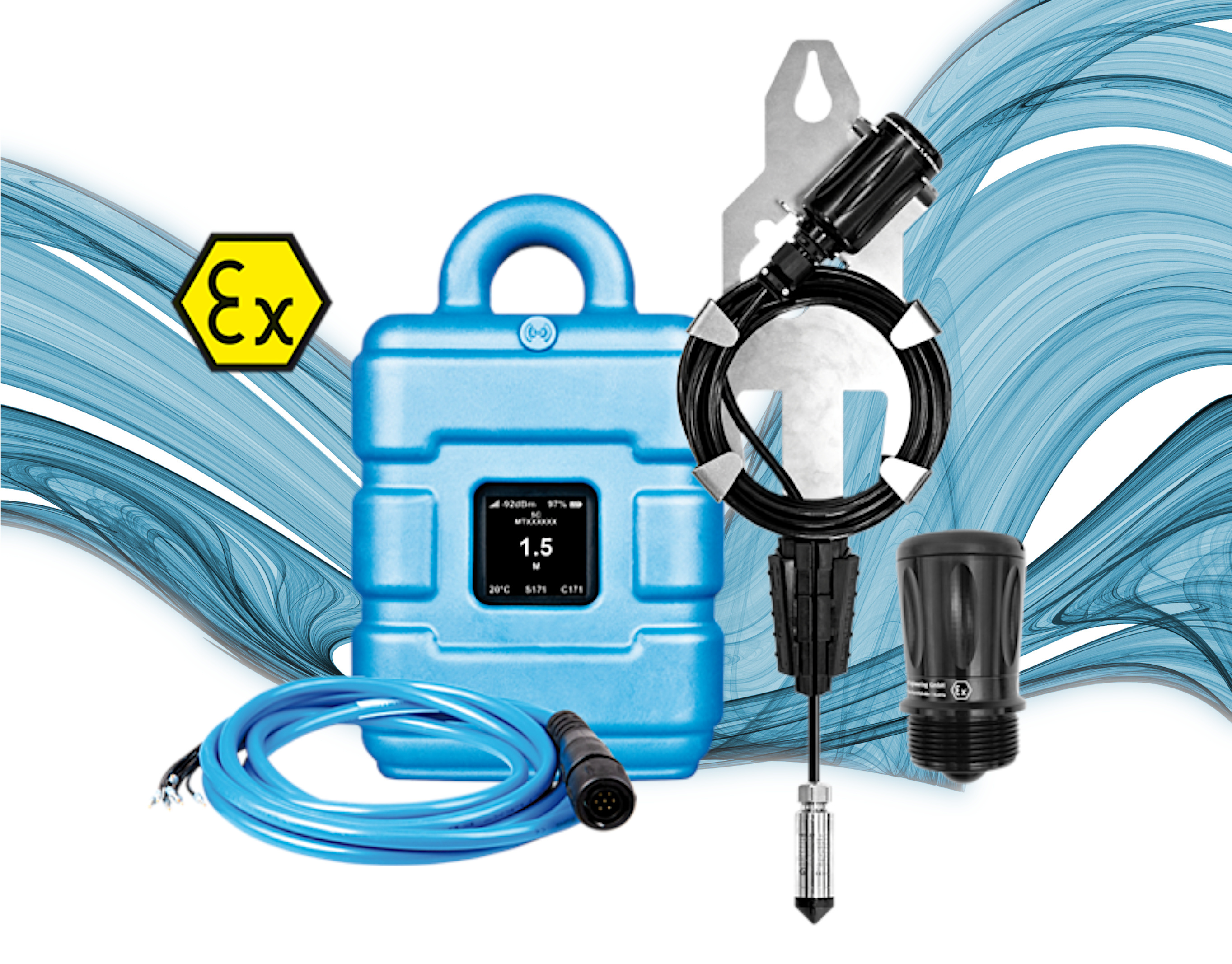

The myDatalog is a robust, chemical-resistant data logger for measuring and transmitting sensor data in harsh environments. The IoT device can be connected to up to 4 Bluetooth BLE sensors. A 4-20mA input with switchable and adjustable sensor supply (from 0.1 seconds; 0..22V) is optionally available.
Pressure and radar sensors for level measurement are available for the myDatalog. The compatibility of other sensors can be checked on request.
The BLE version of the myDatalog has an impressive service life of 10 years (with a 10-second measuring interval and daily mobile phone data transmission). If a sensor is supplied via the mA input, a running time of seven years is achieved (with 5 min measuring interval, 1 sec warm-up and 24 h transmission interval).
The myDatalog is certified for use in the hazardous environment. The data is transmitted via mobile radio or Bluetooth directly from ATEX Zone 1 ( II 2G Ex ib IIB T3 Gb) to the integrated online platform.
The current measured values and relevant status information can be viewed directly on the myDatalog on the 1.5" full color OLED display.
With the myDatalog, the data from several sensors are captured and transmitted. It is possible to combine one mA sensor with up to four BLE sensors.
1 x switchable and adjustable sensor supply from 0.1 seconds Range 0...22V
Temperature sensor
-
Internal sensors and measured values
SOC (state of charge), Battery life in days, Mobile strength
BLE field strength, Humidity and temperature in the device
Power supply
Internal battery 2x Li-SOCl2 (D-cell)
Battery life time
Battery life 10 years with BLE sensor at 10sec measuring interval and 24h data transmission, Battery life 7 years with 4-20 mA sensor with 1sec warm-up time at 5min measuring interval and 24h data transmission
