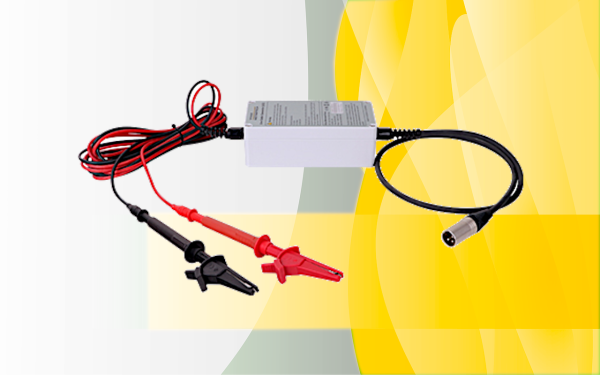

The Live Cable Connector is used to safely feed a locating frequency from a building into a live distribution cable via a standard household socket. This allows the cable to be traced from the terrain to the connection in the street.
The LPC isolation filter can be used with transmitter frequencies of 8 kHz, 33 kHz, 65 kHz and has a rotary switch for phase switching. Use the isolation filter to connect to voltages between 100V AC and 250V AC.
The separating filter is suitable for power cables up to 480 V AC, 50 Hz. It works with frequencies of 8kHz and 33kHz, as well as SIS (Signal Select). The transmitter can be connected to lines with up to 480V with the separating filter.
MODEL VARIANTS
-
- Model LCC: 480V, XLR plug
- Model LCC: 480V, SPO plug
- Model LPC: 240V, XLR plug
- Model LPC: 240V, SPO plug
Note that the 480V separating filter may only be used by approved professionals who comply with operational regulations and workflows and use appropriate safety equipment and clothing.
Manufacturer: Vivax Metrotech
