Level TROLL 500 Datalogger

Product No.:: LVTR500

Price on request

Add to wish list

Ask about product

DESCRIPTION

The Level TROLL 500 is ideal for continuously logging measurements of water level, water pressure and temperature. Available in vented (gauged) pressure ranges up to 500 psig for automatic atmospheric compensation. Sensors calibrated across the full pressure and temperature range deliver accurate data. And solid titanium construction stands up to the most extreme conditions.

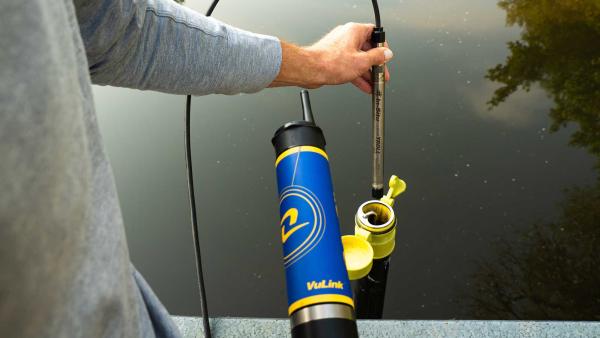

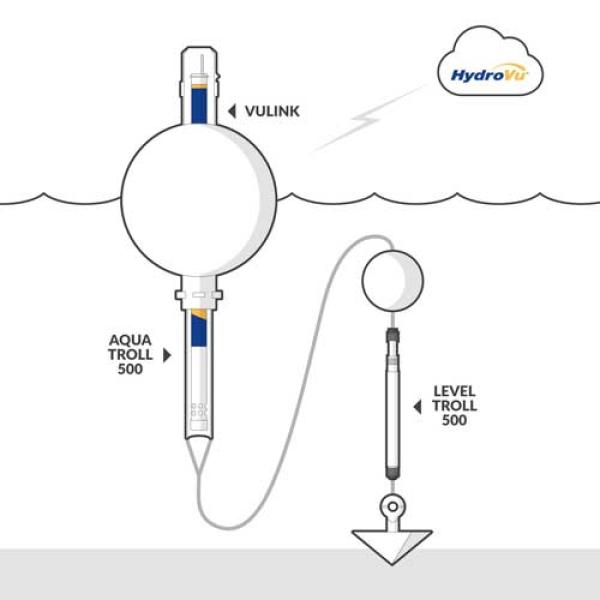

Easily integrate this versatile, sub-1-inch instrument with accessories and in-well telemetry. Pair with VuLink and HydroVu Data Services to enable remote data access and automatic event alerts. Smart Addressing on all In-Situ equipment ensures that each parameter is always mapped to the same Modbus address, allowing you to connect any device to the same data logger without having to reprogram when logging the same parameter.

MODELL VARIANTS

RESPONSIBILITY
We are responsible for ensuring that you receive the right equipment. Your use, measurement and evaluation should provide exactly the data you need. In-Situ's products require more consulting than other items. We assemble your product so that you get the data you need. Do not hesitate to contact us.

TECHNICAL SPECIFICATIONS

General	Level TROLL 400	Level TROLL 500	Level TROLL 700	Level Baro TROLL
Temperature ranges	Operational: -20 to 80° C Storage: -40 to 80° C Calibrated: -5 to 50° C	Operational: -20 to 80° C Storage: -40 to 80° C Calibrated: -5 to 50° C	Operational: -20 to 80° C Storage: -40 to 80° C Calibrated: -5 to 50° C	Operational: -20 to 80° C Storage: -40 to 80° C Calibrated: -5 to 50° C
Diameter	1.83 cm	1.83 cm	1.83 cm	1.83 cm
Lenght	21.6 cm	21.6 cm	21.6 cm	21.6 cm
Weight	124 g	124 g	124 g	124 g
Materials	Titanium body Delrin nose cone	Titanium body Delrin nose cone	Titanium body Delrin nose cone	Titanium body Delrin nose cone
Output Options	Modbus/RS485, SDI-12, 4 to 20 mA	Modbus/RS485, SDI-12, 4 to 20 mA	Modbus/RS485, SDI-12, 4 to 20 mA	Modbus/RS485, SDI-12, 4 to 20 mA
Battery Type	3.6V lithium	3.6V lithium	3.6V lithium	3.6V lithium
External Power	8 to 36 VDC	8 to 36 VDC	8 to 36 VDC	8 to 36 VDC
Memory	2.0 MB	2.0 MB	4.0 MB	1.0 MB
Fastest Logging rate	2 per sec.	2 per sec.	4 per sec.	1 per min.
Fastest output rate	Modbus: 2 per sec. SDI-12 & 4 to 20 mA: 1 per sec.	Modbus: 2 per sec. SDI-12 & 4 to 20 mA: 1 per sec.	Modbus: 2 per sec. SDI-12 & 4 to 20 mA: 1 per sec.	Modbus: 2 per sec. SDI-12 & 4 to 20 mA: 1 per sec.
Log Types	Linear, Fast Linear, and Event	Linear, Fast Linear, and Event	Linear, Fast Linear, Linear Average, Event, Step Linear, True Logarithmic	Linear
