DESCRIPTION

Monitor for RAVEN-EYE 2 (+), BELUGA, BELUGA A/V and PHOENIX 2 flow sensors

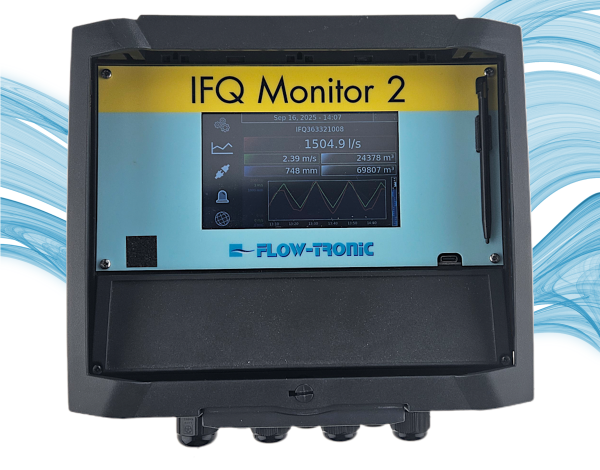

The IFQ Monitor 2 is a user-friendly monitor, data logger and converter for Flow-Tronic flow sensors. It is equipped with one RS485 digital serial communication port for RAVEN-EYE® 2(+), BELUGA, BELUGA A/V or PHOENIX 2 flow sensors and one 4-20 mA input for external level.

The IFQ Monitor 2 comes with three 4-20 mA outputs, two contact outputs for total flow and alarms and one Modbus RTU communication port (optional) for easy integration.

Combined with Flow-Tronic’s FUZION software it allows for a quick configuration of the complete system through the USB-C port. Data can also be directly downloaded in the software for efficient data analysis and display. The system allows for precise fine-tuning of the measure and integration of a Q/h curve.

All data gathered by the flow measuring system is stored on a logger inside the IFQ Monitor 2. The logging system is constituted of 2 different flash memories. One internal 32 MB backup memory and one memory on SD card providing 32 GB of memory. The data is stored as .tsv or .csv files on the memory card (one file per month for ease of data treatment). The file can be configured to only collect the information needed.

  • User friendly interface
  • 1 x RS485 digital sensor interface for RAVEN-EYE®, RAVEN-EYE® 2(+), BELUGA, BELUGA A/V, PHOENIX2
  • 1 x analog input 4 ... 20 mA for ULS-02, ULS-06, PLS-02, PLS-06, RLS-15, RLS-C21 or any other loop powered 4-20 mA level sensor
  • 3 x analog output 4 ... 20 mA for flow, velocity & level
  • 1 x contact closure output for total flow
  • 1 x normally closed relay output for alarm
  • Power supply: AC or DC
  • Logger: 32 Gb flash memory (SD card)
  • LCD 5” color touchscreen
  • Modbus RTU (slave) over RS485 communication port (optional)

  • Hybrid: 2x RS485 digital sensor interface for velocity sensor and 2 x 4-20 mA analog input for velocity or level sensor (optional)

Manufacturer: FLOW-TRONIC S.A./N.V.
TECHNICAL SPECIFICATIONS
Sensor Interface 1× RS485 digital (for RAVEN-EYE®, RAVEN-EYE® 2(+), BELUGA, BELUGA A/V, PHOENIX 2)
OR
1× 4-20 mA analog input (for EMV-500/1000 or any other 4-20 mA velocity sensor)
Analog Input (Level) 1× 4-20 mA (for ULS-02, ULS-06, PLS-02, PLS-06, RLS-15, RLS-C21 or any other loop-powered 4-20 mA level sensor)
Hybrid Option 2× RS485 digital interfaces for velocity sensors
2× 4-20 mA analog inputs (for velocity or level sensors)
Setup & Operation Configuration of level offset, units, output ranges, graphics via touchscreen
Full configuration using FUZION software via USB-C
Available Units Flow: l/s, m³/h, m³/s, m³/d, Ml/d, gpd, gpm, cfm, MGD
Velocity: cm/s, m/s, fps
Level: mm, cm, m, inch, feet
Volume: l, m³, g, cf
Language English (EN)
Display & LEDs 5" LCD color touchscreen
Display: flow, velocity, level, total flow, graphs
Internal battery status indication
2× status LEDs
Outputs 3× 4-20 mA outputs (max. load: 250 Ω)
Outputs: flow, velocity, leve
Logger (Memory) External: 32 GB SD card (up to 250 years of data)
Internal: 32 MB memory (up to 4 months of data at 1-minute logging intervals)
Real-Time Clock Included
Data Formats .tsv, .csv
Additional Features - Q/h curve support
- Dedicated backup battery with charging electronics
CUSTOMER BENEFITS
Monitoring of wastewater/sewer systems:
  • Large sewers
  • Capacity studies
  • Combined sewer overflow (CSO) studies
  • Influence and infiltration studies
  • High-velocity flows
  • Outflow

Wastewater treatment plants:
  • Influence to treatment
  • Outflow
  • Plant effluent
  • Storm outflow
  • Process flow control
