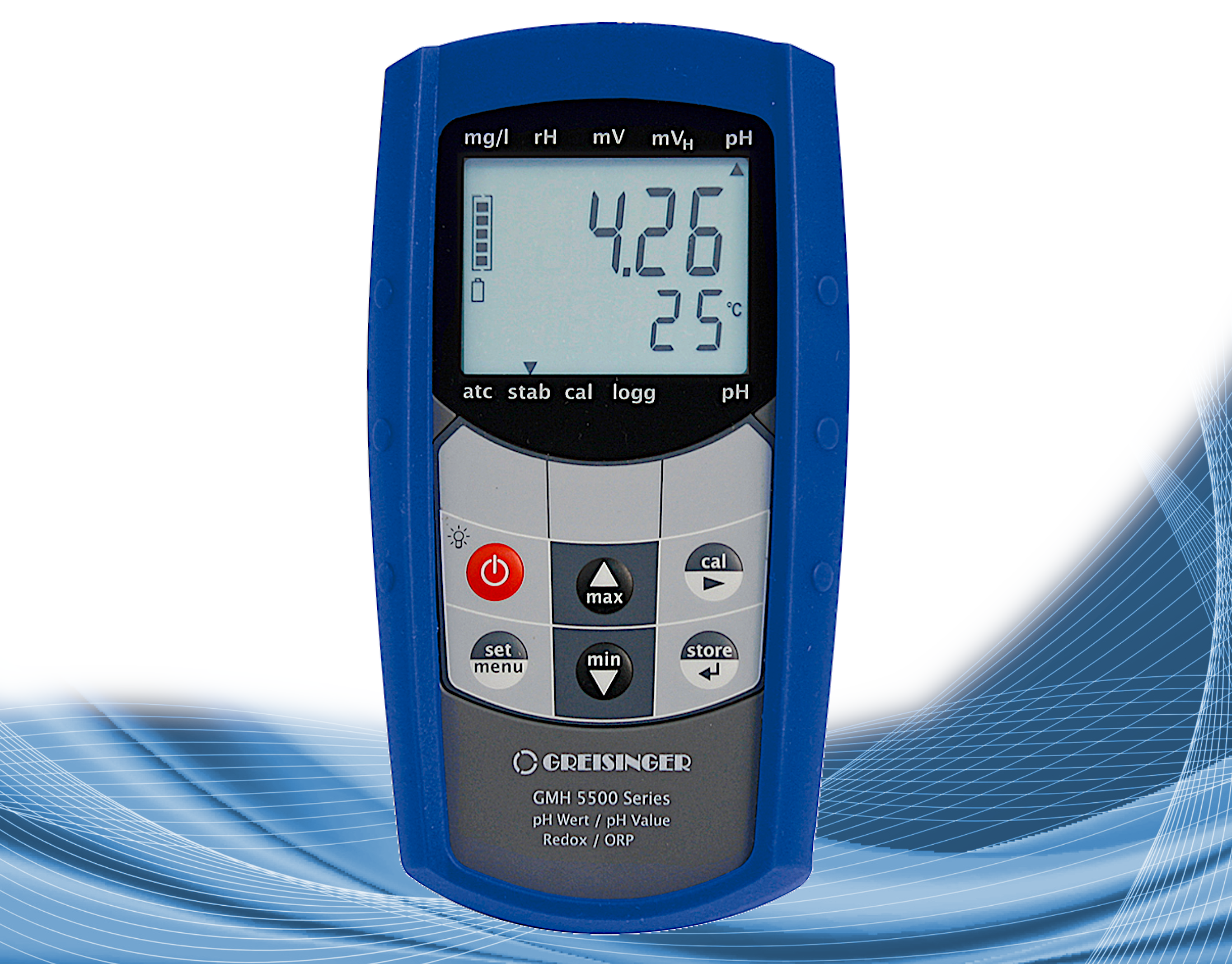

Waterproof pH / ORP meter GMH 5530
Waterproof pH / ORP meter GMH 5530
Waterproof pH / ORP meter GMH 5530

Waterproof pH / ORP meter GMH 5530

Product No.:
600041
350,16 EUR

incl. 20% tax

Add to wish list
Ask about product
DESCRIPTION
The GMH 5530 is suitable for pH monitoring in aquacultures and aquariums, in drinking water supplies and in sewage treatment plants & numerous applications in agriculture (e.g. soil testing). Also suitable for quality assurance and control and monitoring in industrial applications and food production.
As well as for medical, pharmaceutical and industrial laboratories.
Designed for harsh environments: Impact-resistant and protected from water, the device even floats.

  • GLP-features (Good Laboratory Practice)
  • Big dual display with background illumination
  • High resolution (0.001 pH / 0.1 mV)
  • Incl. calibration protocol
TECHNICAL SPECIFICATIONS
Measuring ranges pH -2.000..16.000 pH (variable resolution)
Redox / mV -1999.9..1999.9 mV (variable resolution)
(Based on hydrogen system DIN38404: -1792..+2207 mVH)
Temperature -5.0..+150.0 °C; 23.0..302.0 °F
rH 0.0..70.0 rH
Accuracy pH ±0.005 pH
Redox / mV ±0.05 % FS (mV or mVH)
Temperature ±0.2 °C (in range of -5.0..100.0 °C) rH ±0.1 rH
Connections pH, Redox BNC socket, suitable for standard BNC plug
and waterproof BNC plug with banana socket
(4 mm) for separate reference electrode, input
resistance: 1012 Ω
Temperature 2 banana sockets (4 mm) for temperature
sensor (Pt1000 or NTC 10K)
Interface /
power supply		 4-pole bayonet connection for serial interface
and supply (with USB 5100 accessory)
Operating conditions -25..+50 °C; 0..95 % r.h. (non-condensing)
Display two 4 ½ digit 7-segment displays (15 mm and 12 mm)
CUSTOMER BENEFITS
  • Waters measuring, fishkeeping, aquafarming
  • Drinking water monitoring, process control, soil measuring
  • Food production and monitoring
  • Laboratory: Medicine, pharmaceutics, chemistry
  • Quality management
DOCUMENTS
Manual GHM 5530  (1.38 MB)
Datasheet 5530  (190.5 KB)
