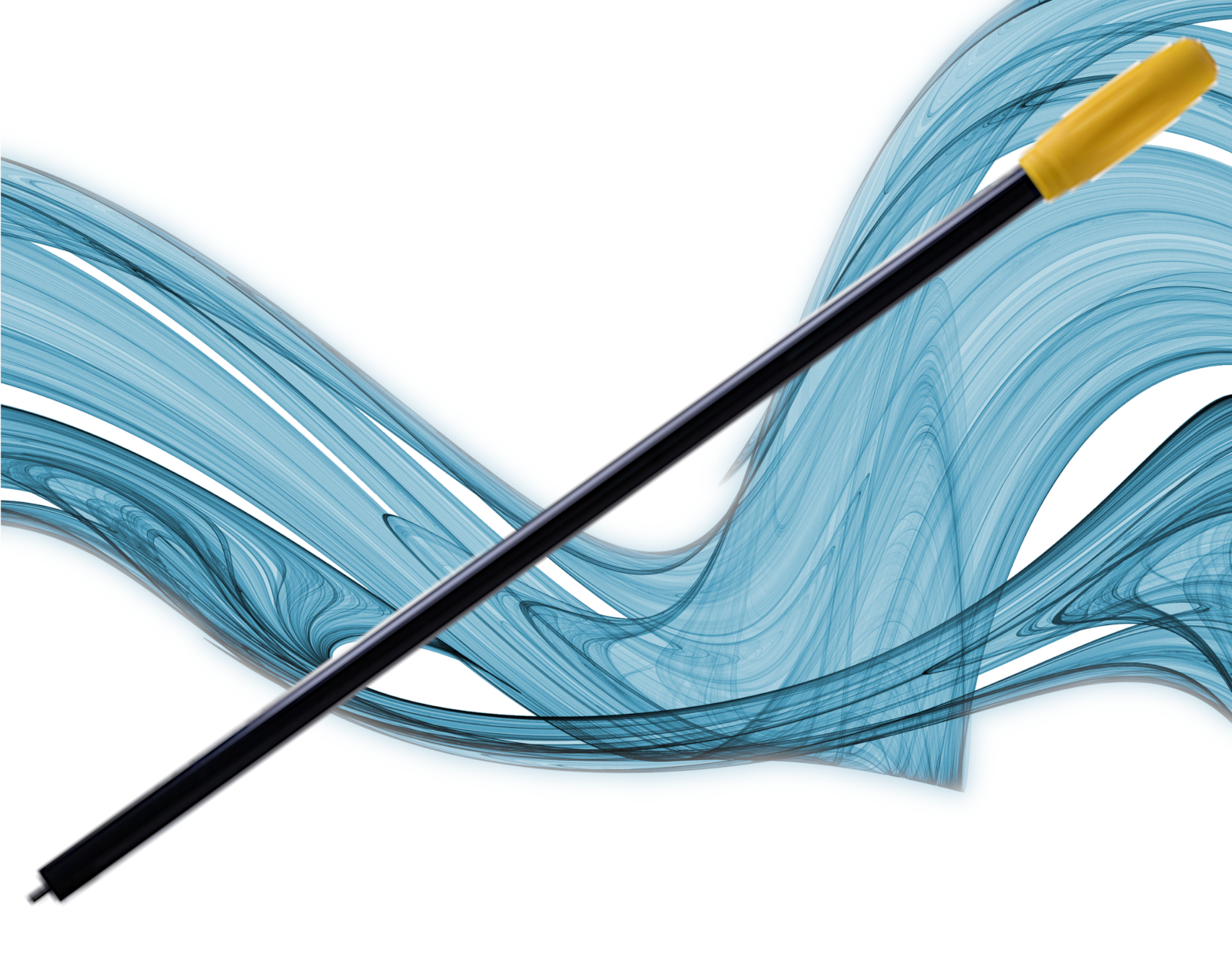

The extension rod for transmitter pliers is made of non-conductive plastic with male and female threads at the opposite ends to screw several rods together, or to screw it directly into the transmitter clamp. With the extension rod, the clamp attached to it can be safely used on overhead lines, lines in trenches or in shafts. The extension rod is equipped with a 6 mm male threaded bolt. This external thread is screwed into the handle of the transmitter pliers to increase the distance to the pliers.
Construction |
Extension rod: PVC
Handgrip: Rubber
Connections: Stainless steel thread inserts |
Weight |
240g |
Dimensions |
- Total lenght: 740mm
- Lenght of grip: 110mm
- Thread lenght: 10mm
- Diameter rod: 21,5mm - Diameter handle: 34,5mm |
Lenght |
Maximum two extension bars / Total lenght: 1,4m |
Connections |
- threaded rod: 6,35mm
- Thread insert: 6,35mm |
Temperature |
Usage: -20oC to 50oC
Storage: -40oC to 60oC |
A non-conductive rod with external and internal threads at opposite ends.
Increases the range of signal clamps so that they can be safely used for cables located in trenches or shafts.
