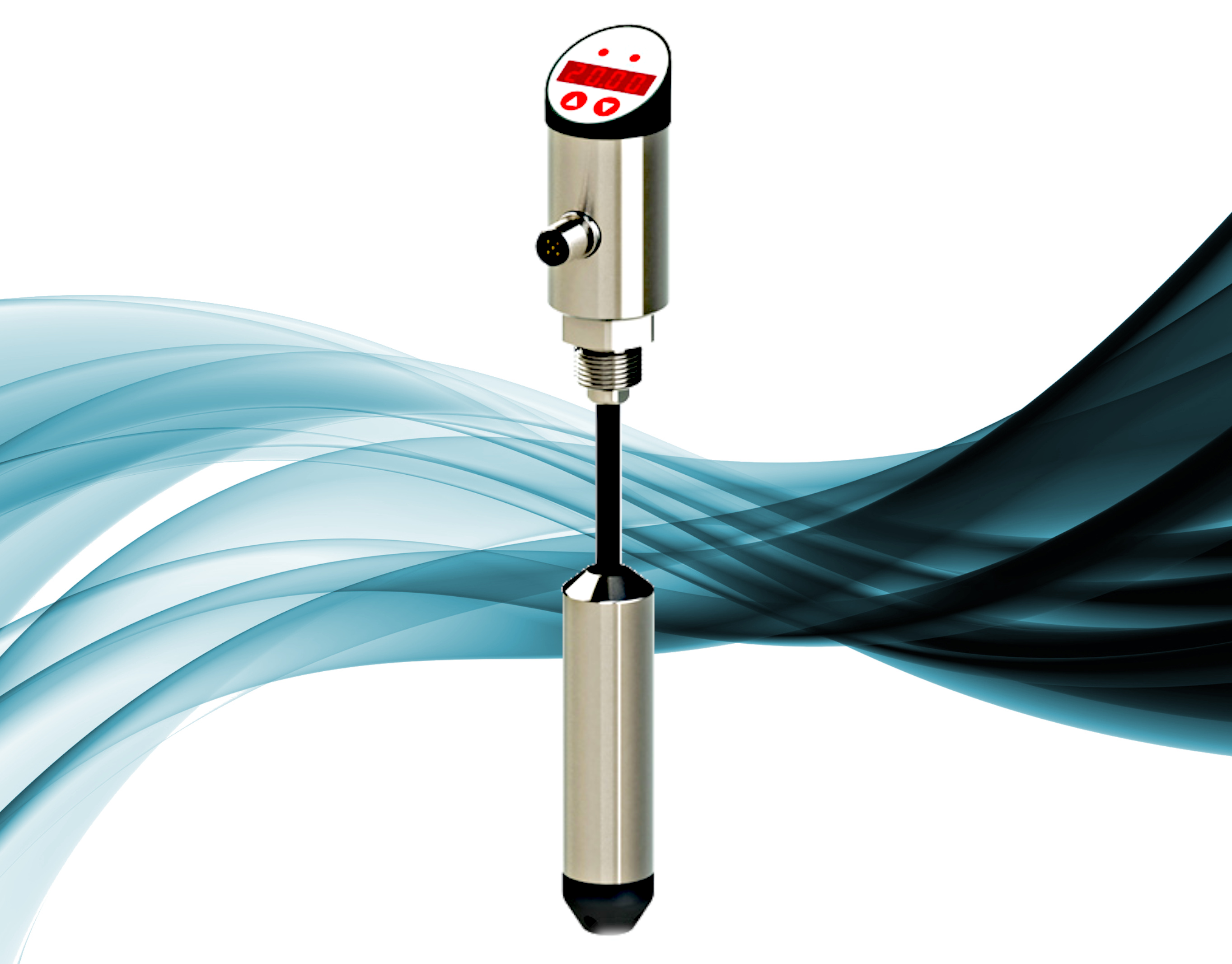

Electronic level switch with display

The model EPT4000-L level switches with display provide continuous pressure monitoring. It is easy to configure the switching point and reset point without pressurizing, or to change the type of contact (NO / NC), the damping, the delay and NPN/PNP switching. In addition, authorised personnel can quickly and easily access the user menu to alter the switching points.The product can transfer the collected pressure signal into standard current and  pressure signal output. The display and connection can rotate freely within 330 degrees so that it can be easily installed.


• Measuring ranges from 2mH2O to 120mH2O
• Gauge pressure- Accuracy: 0.5%FSO(Typ.)
• Calibrated and temperature compensated
• Switching output (PNP / NPN) configurable
• Configurable analogue output
• 4 digits (-999 ... 9999) display
