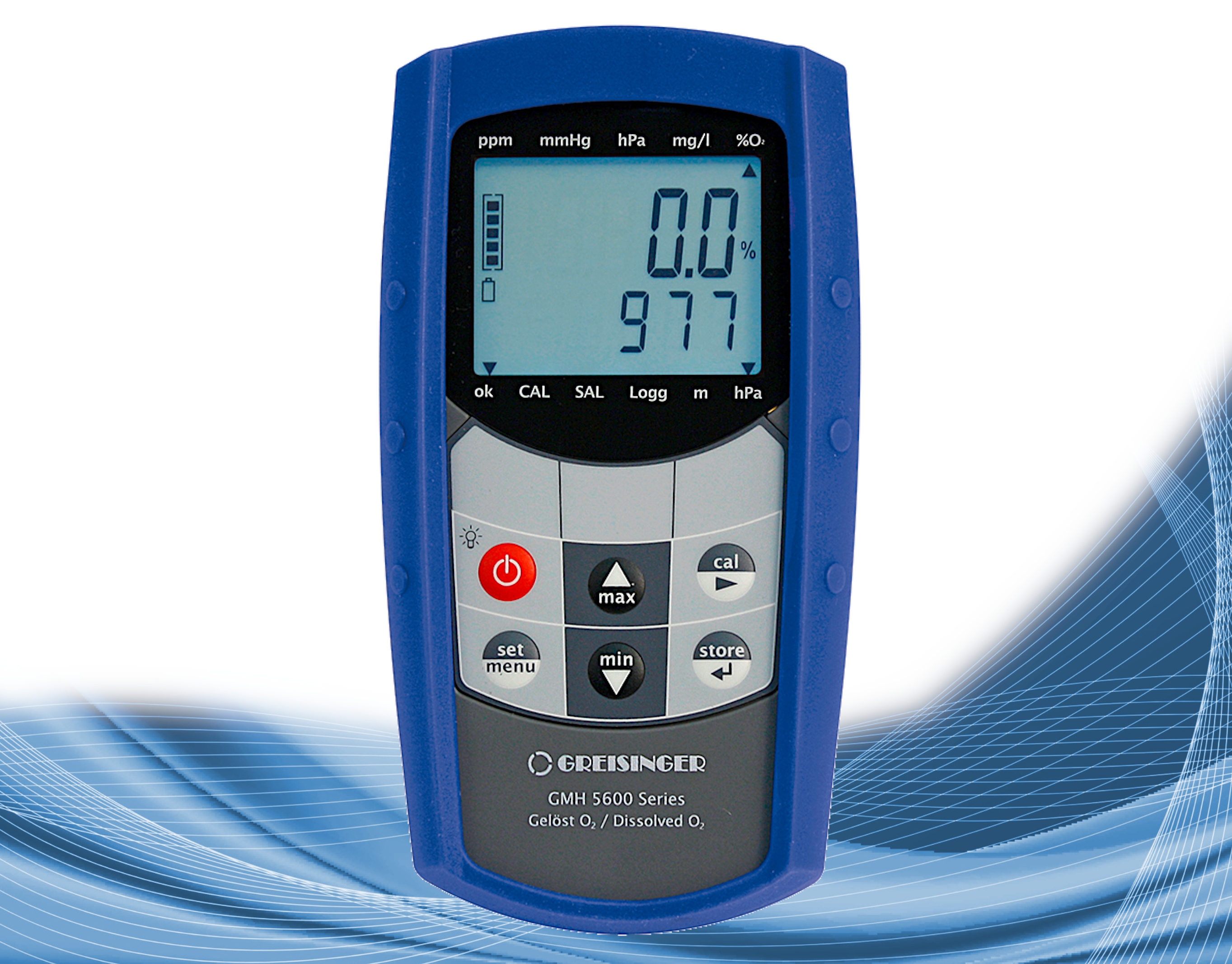

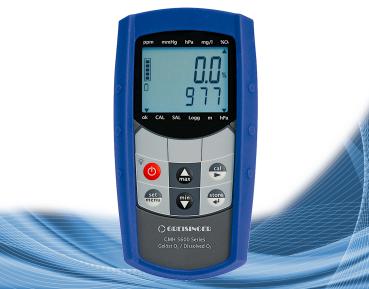

Dissolved oxygen device GMH 5630 / 5650
Dissolved oxygen device GMH 5630 / 5650
Dissolved oxygen device GMH 5630 / 5650

Dissolved oxygen device GMH 5630 / 5650

Product No.:
GMH 5600-606880
chevron-down
Price on request

Add to wish list
Ask about product
DESCRIPTION
Oxygen monitoring in aquaculture and aquaria. Testing of well water, sewer systems and in wastewater treatment plants, also suitable for harsh environments. Delivery can take place ready for use (filled) or dry. Electrodes delivered try are long lasting and ready for use within about 1 h after filling.
MODEL VARIANTS
  • GMH 5630: Handheld instrument for dissolved oxygen without accessories
  • GMH 5650: Handheld instrument for dissolved oxygen with data logger without accessories
TECHNICAL SPECIFICATIONS
  GMH 5630 GMH 5650
Measuring channels O2, T, air pressure
(integrated)		 O2, T, air pressure
(integrated) /me-
asuring depth *1
Measuring ranges
O2-concentration 0.00 ... 70.00 mg/l (ppm)
(Variable resolution)		 0.00 ... 70.00 mg/l (ppm)
(Variable resolution)
O2-saturation 0.0 ... 600.0 % O2
(Variable resolution)		 0.0 ... 600.0 % O2
(Variable resolution)
O2-partial pressure 0 ... 1200 hPa O 2
(0.0 ... 427.5 mmHg)		 0 ... 1200 hPa O 2
(0.0 ... 427.5 mmHg)
Temperature 0.0 - 50.0 °C 0.0 - 50.0 °C
Air pressure 10 ... 1200 hPa
abs		 300 ... 5000 hPa
abs
Measuring depth - 0 ... 40.0 m water
column *1)
Accuracy
Oxygen ±1.5 % of m.v. ±0.2 mg / l
(0 ... 25 mg / l) or
±2.5 % of m.v. ±0.3 mg / l
(25 ... 70 mg / l)		 ±1.5 % of m.v. ±0.2 mg / l
(0 ... 25 mg / l) or
±2.5 % of m.v. ±0.3 mg / l
(25 ... 70 mg / l)
Temperature 0.0 - 50.0 °C 0.0 - 50.0 °C
Air pressure 10 ... 1200 hPa
abs		 300 ... 5000 hPa
abs
Sensor GWO 5610, active diaphragm type with platinum cathode, Ø 12 mm, standard cable length 2 m, 7 pin bayonet connection GWO 5610, active diaphragm type with platinum cathode, Ø 12 mm, standard cable length 2 m, 7 pin bayonet connection
Response time 90 % in 10 s 90 % in 10 s
CUSTOMER BENEFITS
  • For O2 dissolved in liquids
  • Waterproof and durable
  • Large double display
  • Battery life approx. 1000 hours
DOCUMENTS
Manual GMH 5630  (1.61 MB)
Datasheet GMH 5600  (444.82 KB)
