Probes are small, self-contained, battery-powered transmitters. Probes are pushed through non-metallic tubes and channels and can be located on the surface by a probe locator or a probe-mode receiver. Probes are also installed in other products, such as inspection cameras, crawler cameras or a nozzle hose. Probes come in different sizes, depending on how deep they can be located. Different frequencies are available that make it possible to place probes in metallic or non-metallic pipes and channels.
Special features:
Probes for pusher cable mounting: D18, PL18, PL18 Kit, MPL9, VMS6
For blowing: MPL4
Flex Probe: D23Micro Probes: MPL4, MPL9, VMS6
Available frequencies 512Hz 640Hz 9.83kHz 33kHz 83kHz
Probes are available in different models, depending on the application and device: see overview Figure 2

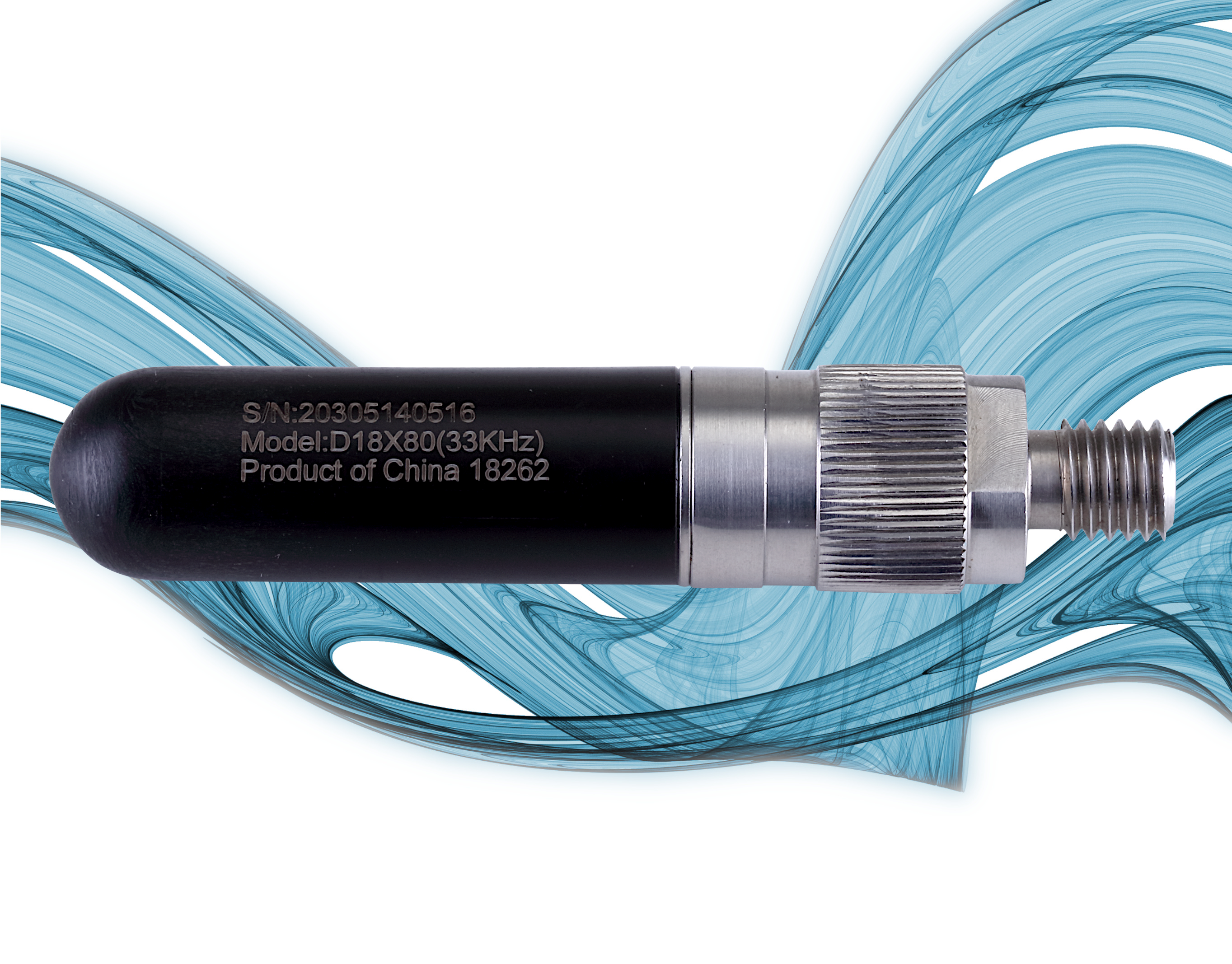

Model D18: D 18mm, length 80mm or 92mm, location depth 4.5m, hertz 32.8kHz, M10 male
Model
PL18: D 18mm, length 85mm, location depth 10m, hertz 32.8kHz, M10 male, M12 female
Model D22: D 22mm, length 104mm, location depth 2.4m, hertz 9.82kHz or 83.1kHz, M12 female
Model D23: D 23mm, length 456mm, detection depth 7m, hertz 512Hz or 640Hz, M10 male, flex probe
Model D38: D 38mm, length 122mm, locating depth 5m, hertz 9.82kHz, 32.8kHz, 83.1kHz, M10 male
Model D64: D 64mm, length 180mm, locating depth 8m, hertz 9.82kHz, 32.8kHz, 83.1kHz, M10 male
Micro probes:
Model MPL4: D 4.6mm, length 94mm, locating depth 2.3m, hertz 32.8kHz, M3.5 female
Model MPL9: D 9mm, length 138mm, locating depth 5.7m, hertz 32.8kHz, M5 &M6 female
Model VMS6: D 6.4mm, length 114mm, locating depth 4.7m, hertz 32.8kHz, M5 female
