Absolute Data Logger - Reel Model

Product No.:: dipperLogThoughR

Price on request

Add to wish list

Ask about product

DESCRIPTION

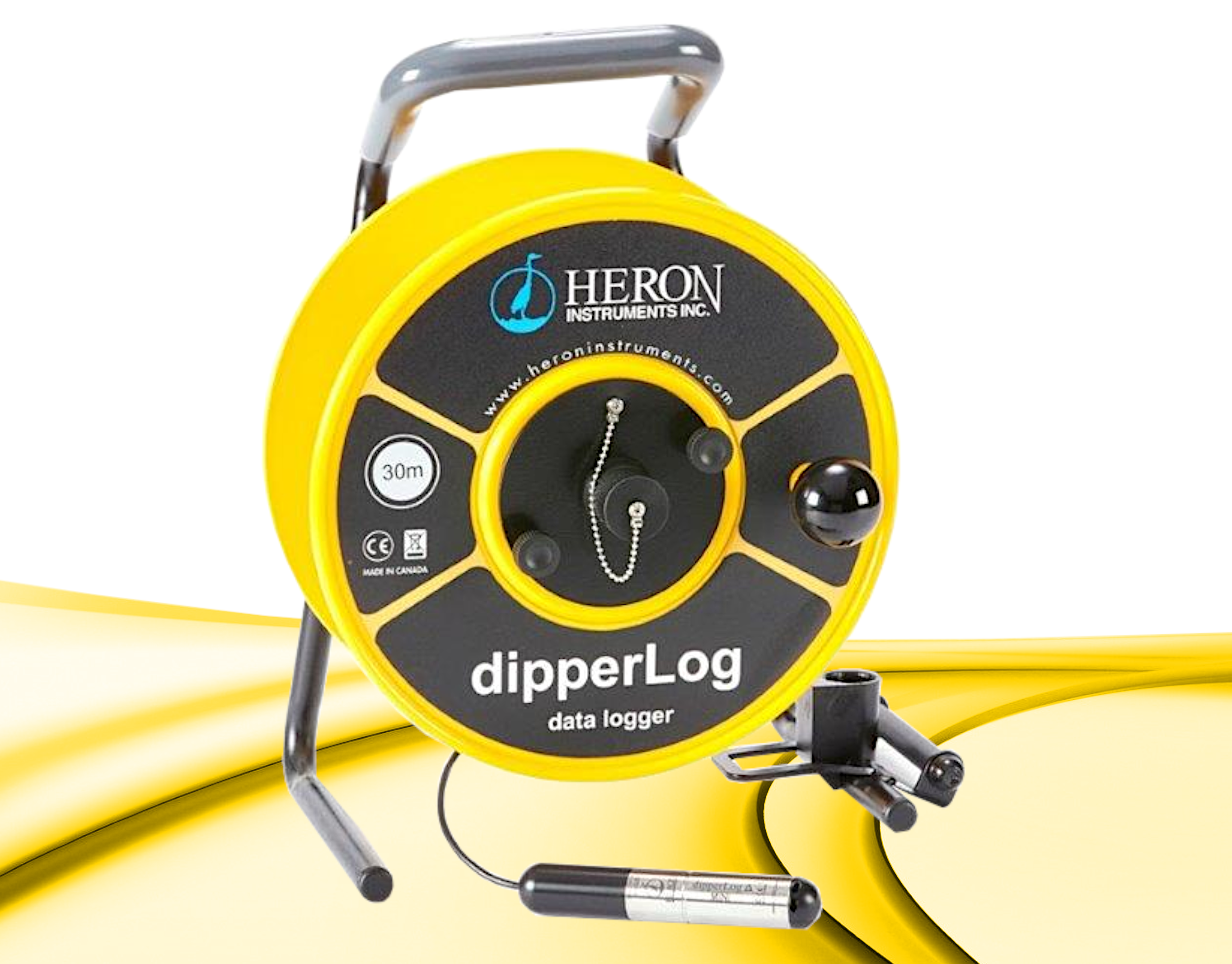

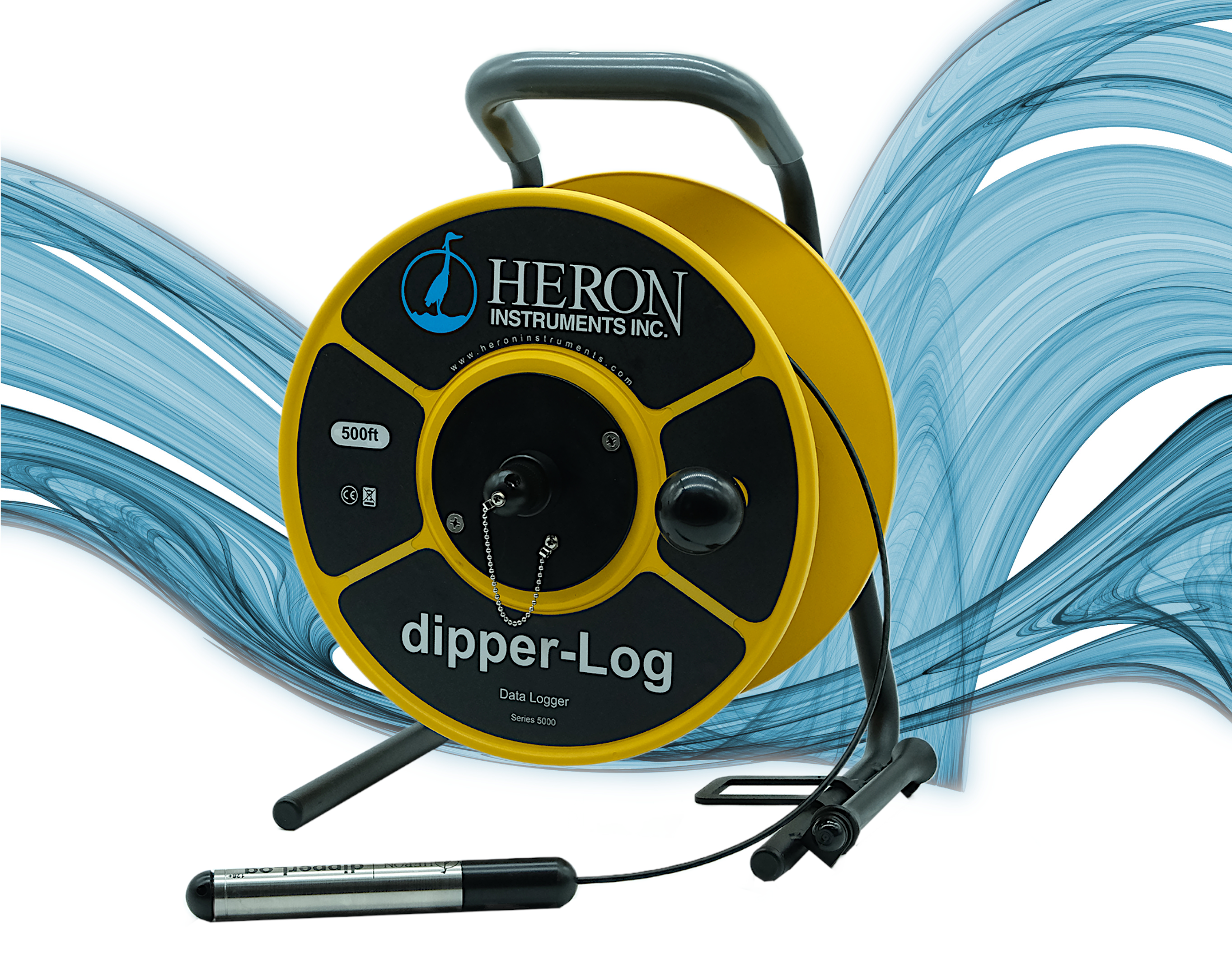

The Reel Model is an ideal option when transporting your data logger from site to site for pump and slug tests or any other short term deployment. Programming and downloading of the data is capable via the connection on the face plate on the reel.

COMPATIBLE DATA LOGGERS

dipperLog 128+

3 Year Warranty
Available in All Pressure Ranges
128,000 Pressure & Temperature Data Sets
Expected Battery Life Up To 15 Years

dipperLog TOUGH+

3 Year Warranty
Available in All Pressure Ranges
128,000 Pressure & Temperature Data Sets
Titanium Body
Teflon™ Encapsulated O-Rings
Suitable for Use in the Most Caustic & Hazardous Environments
Expected Battery Life Up To 15 Years

TECHNICAL SPECIFICATIONS

Reel Size	Standard (<300 m/1000 ft), Large (>300 m/1000 ft)
Memory	128,000 readings
Download Speed	19,200 bps (128,000 readings downloads in 6 minutes)
Factory Calibrated Ranges	10 m (aprx. 30 ft), 30 m (aprx. 100 ft), 60 m (aprx. 200 ft), 120 m (aprx. 400 ft)
Operational Range	10m (aprx. 30 ft), 30 m(aprx. 100 ft), 60 m (aprx. 200 ft), 120 m (aprx. 400 ft) All ranges are representative of use at sea level. Use above sea level will result in higher operational range
Overpressure Rating	2X Factory Calibrated Range
Operating Temperature	-20°C to 80°C
Battery Life (Readings)	up to 5 million (depending on usage)
Battery Life (Max)	up to 15 Years (depending on usage)
Wetted Material	316 Stainless Steel, Delrin® & Rubber Buna (PFAS free Wetted Materials)
Length	14.5 cm (5.7")
Diameter	22 mm (9")
Weight	170 g (37 lbs)
