Product No.:
dipperLogThoughd
Price on request

Add to wish list
Ask about product
DESCRIPTION

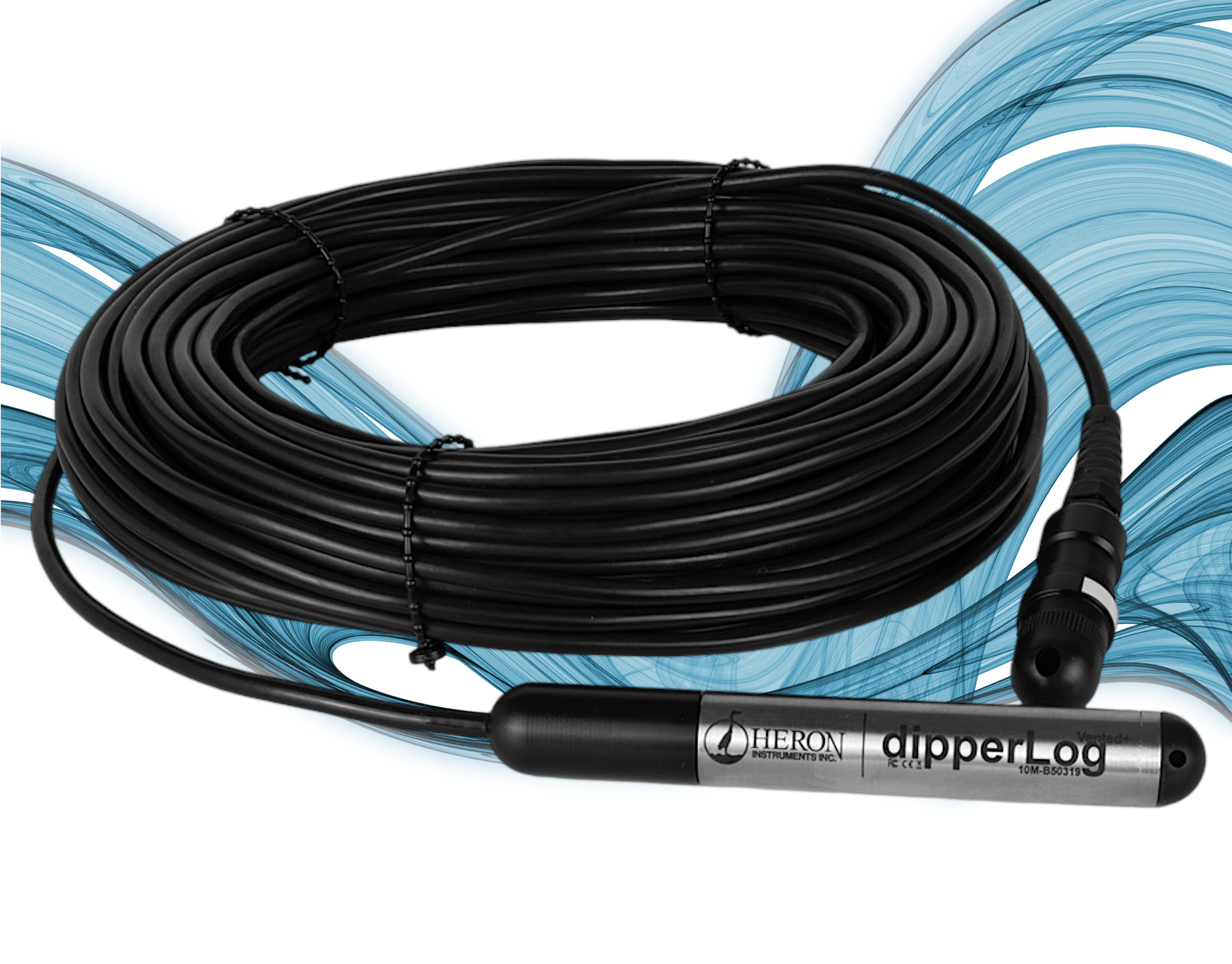

This is the least labour intensive model for groundwater data logging. The data logger is suspended on a direct read cable, which establishes a connection to the data logger at the wellhead. Programming, downloading, stopping and starting data collection can be done while the logger is deployed. Just connect your laptop or Windows Tablet at the wellhead.


dipperLog 128+
  • 3 Year Warranty
  • Available in All Pressure Ranges
  • 128,000 Pressure & Temperature Data Sets
  • Expected Battery Life Up To 15 Years
dipperLog TOUGH+
  • 3 Year Warranty
  • Available in All Pressure Ranges
  • 128,000 Pressure & Temperature Data Sets
  • Titanium Body
  • Teflon™ Encapsulated O-Rings
  • Suitable for Use in the Most Caustic & Hazardous Environments
  • Expected Battery Life Up To 15 Years
MODEL VARIANTS
  • Logger: dipperLog 128+, dipperLog TOUGH+
  • dipperLog 128+: 10 m/30 ft, 30 m/100 ft, 60 m/200 ft, 120 m/400 ft
  • dipperLog TOUGH: 10 m/30 ft, 30 m/100 ft, 60 m/200 ft, 120 m/400 ft
TECHNICAL SPECIFICATIONS
Memory 128,000 readings
Download Speed 19,200 bps (128,000 readings downloads in 6 minutes)
Factory Calibrated Ranges 10 m (aprx. 30 ft), 30 m (aprx. 100 ft), 60 m (aprx.
200 ft), 120 m (aprx. 400 ft)
Operational Range 10m (aprx. 30 ft), 30 m(aprx. 100 ft), 60 m (aprx.
200 ft), 120 m (aprx. 400 ft) All ranges are
representative of use at sea level. Use above
sea level will result in higher operational range
Overpressure Rating 2X Factory Calibrated Range
Operating Temperature -20°C to 80°C
Battery Life (Readings) up to 5 million (depending on usage)
Battery Life (Max) up to 15 Years (depending on usage)
Wetted Material 316 Stainless Steel, Delrin® & Rubber Buna (PFAS free Wetted Materials)
Length 14.5 cm (5.7")
Diameter 22 mm (9")
Weight 170 g (37 lbs)
DOCUMENTS
Manual dipperLogThough  (5.47 MB)
Datasheet dipperLogThough  (166.17 KB)
Brochure dipperLogThough Direct  (2.16 MB)
